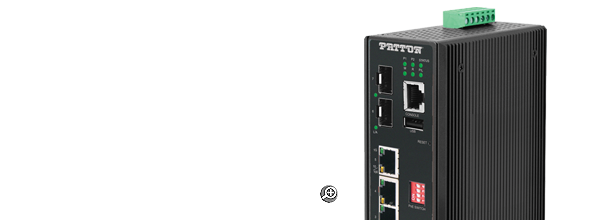

FiberPlex FP2005EBT Industrial Gigabit Managed 90W PoE++ Switch; 7-Port 10/100/1000, 5 Copper + 2 x GigE SFP; Industrial packaging

FiberPlex FP2005EBT Industrial Gigabit Managed 90W PoE++ Switch; 7-Port 10/100/1000, 5 Copper + 2 x GigE SFP; Industrial packaging

SKU: N/A Category: Tags: , , , ,
Brand: Fiberplex

Price range: $2,476.10 through $2,923.80

Description

Patton’s FP2005E/BT is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000Tx gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection. The FP2005E/BT is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The FP2005E/BT is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

FiberPlex™ 2005E/BT application diagram

Additional information

Model

FP2005E/2SFP/4BT/24DC, FP2005E/2SFP/4BT/48DC
  • System Interface/Performance – Supports auto MDI/MDI-X function
    7 ports include 4 10/100/1000TX RJ45 IEEE 802.3bt (90W) ports, 1 10/100/1000TX RJ45 port, and 2 100/1000 SFP cages
    Network redundancy features:

    • Spanning Tree: RSTP/MSTP
    • Ring Protection: G.8032 ERPS

    Traffic prioritization features:

    • IEEE802.1Q VLAN
    • IEEE802.1p; CoS/ToS

    IGMPv1/v2 up to 256 groups
    8K MAC address table
    9.6K Jumbo frame supports
    ESD protection: 6,000 VDC

  • Power Input – Redundant power input design: 48–55 VDC
    Built-in relay output for power failure detection
    PoE++ Ping Alarm for PoE+ port power cycling
    Surge protection: 2,000 VDC support
  • Extended Operating Temperature – -40 to 167°F (-40 to 75°C)
  • Case/Installation – IP30 rugged metal case
    DIN-rail and wall mount support
Technology L2 Switching:

  • Port/MAC/Protocol/IP Subnet-based VLAN
  • GARP/GVRP
  • Loop Guard
  • Link Aggregation static/LACP
  • BPDU guard
  • Error disable recovery
  • IGMP snooping v1/v2/v3
  • MLD snooping v1/v2
  • IGMP filtering
  • IPMC throttling / filtering leave proxy
  • DHCP snooping
  • G.8032 v1/v2

L3 Switching:

  • DHCP option82
  • Static routes

QoS:

  • 802.1p Queueing
  • Input priority mapping
  • Storm control for Unicast/Multicast/Broadcast
  • Port/Queue/ACL policer
  • Port egress shaper
  • Queue egress shaper
  • DiffServ (DSCP)
  • Tag remarking
  • Scheduler mode

Power Saving:

  • ActiPHY
  • PerfectReach
  • IEEE 802.3az EEE power management

Network Redundancy:

  • STP/RSTP/MSTP
  • Port trunk with LACP
  • ERPS v1/v2 (<50ms)

Configuration:

  • Http
  • Https
  • Telnet
  • SSH
  • CLI
  • TFTP
  • SNMP v3v

System/Diagnostics:

  • Dual Image Protection
  • PING
  • PING6
Switch Properties Switch Architecture: Back-Plane (Switching Fabric): 24 Gbps

Protocols:

  • IPv4/IPv6
  • SNMP v1/v2c/v3
  • LLDP
  • LLDP-MED
  • HTTP
  • HTTPS
  • SSHv2 telnet
  • DHCP client
  • DHCPv6 client
  • DHCP server
  • Port Mirror
  • DNS client/proxy
  • IP based Access Filter
  • ICMPv6, syslog
  • Time Zone /Daylight Saving
  • NTP client
  • RMON
  • sFlow
  • Loop detection
  • Console Port
  • USB configuration backup/restore
  • Power lost warning
  • Relay trigger

Priority Queues: 8

Processing Type: Store and Forward

Flow Control:

  • IEEE 802.3x for full duplex mode
  • Back pressure for half duplex mode

Transfer Rate:

  • 14,880 pps for Ethernet port
  • 148,800 pps for Fast Ethernet port
  • 1,488,000 pps for gigabit Ethernet port

Packet Buffer: 4Mbits

Jumbo Frame: 9.6Kbytes

MAC Table Size: 8K

VLAN Group: 4095

IGMP Group: 1024
Port Interface Ethernet Port:

  • 5*10/100/1000Base-TX (90W/port for ports 1~4 only)
  • Auto negotiation speed
  • Full/half duplex mode
  • Auto MDI/MDI-X connection

SFP Port: 2*100/1000 SFP Slots

RS232 Serial Console: 1*RS232 in RJ45

LED Indicators: System:

  • System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L)
  • Ethernet ports: Speed/Link/Active
  • PoE: On-connected to PD devices
  • SFP: Link/Active
Protection Network Cable:

  • 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m)
  • 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
  • 1000Base-TX: 4-pair UTP/STP Cat. 5/5E cable EIA/TIA-568 100-ohm (100m)
Mechanical Characteristics Housing:

  • Metal
  • IP30 protection

Dimensions: 2.1W x 5.6H x 3.9D in. (54W x 142H x 99D mm)

Weight:

  • Unit: 2.29 lbs (1.04 kg)
  • Shipping: 3.01 lbs (1.37 kg)

Mounting:

  • DIN-Rail Mounting
  • Wall Mounting
Power Requirement Input Voltage:

  • 48–55 VDC
  • Redundant Input (53–55 VDC power input for BT PoE PSE)

Power Connection: Removable 6-Contact Terminal Block

Relay Contact: 24VDC, 1A resistive

PoE Pin Assignment:

  • V-, V-, V+, V+ for pin 1, 2, 3, 6
  • V+, V+, V-, V- for pin 4, 5, 7, 8
  • *Support Modes: Mode A, Mode B, 4-Pair Mode

Overload Current Protection: Present

Reverse Polarity Protection: Present

System Power Consumption: 10.8W

PoE Power Budget: 240W @ 48–55 VDC
Environmental Limits Operating Temperature:

  • STD: 14 to 149°F (-10 to 65°C)
  • EOT: -40 to 167°F (-40 to 75°C)

Storage Temperature: -40 to 185°F (-40 to 85°C)

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Regulatory Approvals EMI:

  • FCC Part 15 Subpart B Class A
  • CE EN55032/EN61000-6-4 Class A

EMS:

  • CE EN55035/EN61000-6-2 Class A
  • IEC61000-4-2,3,4,5,6,8

Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

Green: RoHS Compliant

Certifications: FCC, CE

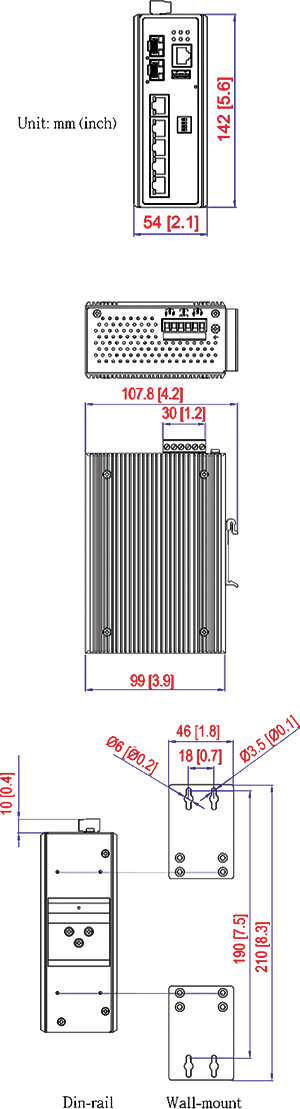

FiberPlex FP2005E/BT Dimensions

# Model # Description Availability
1 FP2005E/2SFP/4BT/24DC Managed Industrial PoE+ Ethernet Switch; 1 x 10/100/1000; 4 x PoE BT 10/100/1000 (90 watts/port) 2x GigE SFP; – 40 -75C, 12-55VDC input Pre-Order Available
2 FP2005E/2SFP/4BT/48DC Managed Industrial PoE+ Ethernet Switch; 1 x 10/100/1000; 4 x PoE BT 10/100/1000 (90 watts/port) 2x GigE SFP; – 40 -75C, 48-55VDC input Pre-Order Available
