Description
Patton’s FP102E converts singlemode or multimode fiber to a copper Ethernet signal. 10-gigabit Ethernet is ideal for bandwidth intensive audio and video over IP applications like SDVoE or HDBaseT, telecom backhaul, transportation, and data center connectivity.
Because 10-gigabit Ethernet over Cat 6a cables is limited to about 50 meters (164 feet), using fiber as a backhaul allows for a massive increase in distances. SFP options for multimode can reach up to 2 km (1.24 miles) and singlemode options can range as far as 60 km (37 miles). In addition to the reach, you get fiber’s superior immunity to noise and, harmful transients (surges).

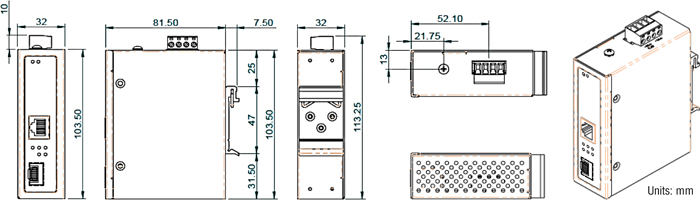

The FP102E is housed in an IP30-rated DIN-rail or wall-mount enabled enclosure, and has an operating temperature of -40 to 75°C. Its rugged design and wide temperature range makes it an ideal media converter for industrial or harsh environments.
The Fiberplex FP102E is very simple to use, completely plug and play. LEDs will make it clear when power is detected, data is being passed on both the fiber and copper links and what data rates are being detected.
