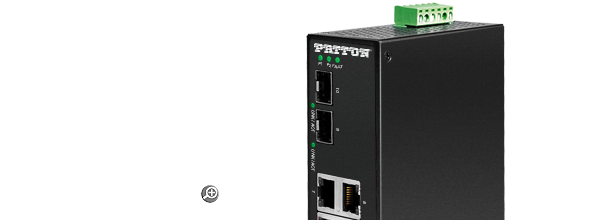

FiberPlex FP1008E Un-Managed Industrial Gigabit Ethernet Switch 10 Port 10/100/1000, 8 Copper + 2 x GigE SFP; industrial packaging

FiberPlex FP1008E Un-Managed Industrial Gigabit Ethernet Switch 10 Port 10/100/1000, 8 Copper + 2 x GigE SFP; industrial packaging

Category: Tags: , , , ,
Brand: Fiberplex

$941.60

Description

Patton’s FP1008E Un-Managed Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1008E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 RJ45 10/100/1000 Ethernet ports and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments the FP1008E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

unmanaged industrial ethernet switch, din rail ethernet switch, industrial unmanaged ethernet switch | FiberPlex™ 1008E application diagram

  • Supports auto MDI/MDI-X function
  • 10 ports include 8 10/100/1000TX RJ45 ports and 2 100/1000 SFP cages
  • Store-and-forward switching architecture
  • 20-Gbps backplane (switching fabric)
  • 8K MAC address table
  • 9.6K Jumbo frame supports
  • ESD protection: 6,000 VDC support
  • Redundant power input design: 12–48 VDC
  • Built-in relay output for power failure detection
  • Surge protection: 2,000 VDC support
  • Operating temperature range—EOT: -40 to 75°C
  • IP30 rugged metal case design
  • DIN-rail and wall mount support
Ethernet Port 8 RJ45 Ports with 10/100/1000TX auto MDI/MDI-X connection & 2 100/1000 SFP cages
Fiber Port Wavelength: Refer to SFP+ modules at patton.com/SFP-OC
2 1-Gig SFP cages
Standards IEEE 802.3, 3u, 3ab, 3az
Switching Architecture Backplane (Switching Fabric): 20 Gbps
Transfer Rate up to 1.0Gbps for Gigabit Ethernet port
Jumbo Frame 9.6 Kbytes
MAC Table Size 8K
Free fall / Shock / Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Overload Current Protection Present
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95%, (non-condensing)
Input Voltage 12–48 VDC, Redundant Input (with 1 removable 6-contact terminal block)
100–240 VAC adapter (optional)
Power Consumption 10 Watts
Reverse Polarity Protection Yes
Housing Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
Dimensions 1.81W x 3.89D x 5.59H in. (46W x 99D x 142H mm)
Weight Unit Weight: 2.5 lbs. Shipping Weight: 3.0 lbs
Certifications FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
EMI FCC Class A
EMS EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4



# Model # Description Availability
1 FP1008E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch; 8 x 10/100/1000 (RJ45); 2 x GigE SFP, -40 to 75C; 12-48VDC Input General Availability
