FiberPlex FP1005E Un-Managed Industrial Gigabit Ethernet Switch 6 Port 10/100/1000, 4 Copper + 1 x GigE SFP + 1 x SFP/TX Combo; industrial packaging

FiberPlex FP1005E Un-Managed Industrial Gigabit Ethernet Switch 6 Port 10/100/1000, 4 Copper + 1 x GigE SFP + 1 x SFP/TX Combo; industrial packaging

Category: Tags: , , , ,
Brand: Fiberplex

$391.60

Description

Patton’s FP1005E Unmanaged Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1005E is housed in an sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 5 RJ45 10/100/1000 Ethernet ports, 1 100/1000 SFP slot and 1 SFP/TX combo slot that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP1005E provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

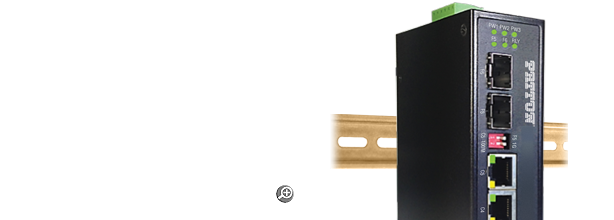

FiberPlex™ FP1005E application diagram

  • System Interface/Performance –
    • Supports auto MDI/MDI-X function
    • 6 ports include 4 10/100/1000TX RJ45 ports, 1 100/1000 SFP cage, and 1 SFP/TX combo SFP cage
    • Store-and-forward switching architecture
    • 12-Gbps backplane (switching fabric)
    • 1K MAC address table
    • 9K Jumbo frame supports
    • 1M Packet buffer size
    • ESD protection: 6,000 VDC support
  • Power Input –
    • Redundant power input design: 12–56 VDC
    • Built-in relay output for power failure detection
    • Surge protection: 2,000 VDC support
  • Operating Temperature Range – EOT: -40 to 75°C
  • Case/Installation –
    • IP30 rugged metal case design
    • Installation in pollution degree to environment
    • DIN-rail and wall mount support
Ethernet Port 5 RJ45 ports with 10/100/1000TX auto MDI/MDI-X connection
Fiber Port Wavelength: Refer to SFP+ modules at patton.com/SFP-OC
1 100/1000 SFP cage and 1
SFP/TX combo cage
Standards IEEE 802.3x, 3u, 3ab, 3az
Switching Architecture Backplane (Switching Fabric): 12 Gbps
Transfer Rate Up to 1.0 Gbps for Gigabit Ethernet port
Jumbo Frame 9 Kbytes
MAC Table Size 1K
Packet Buffer Size 1M
Protocol CSMA/CD
Free fall / Shock / Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Overload Current Protection Present
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Humidity 5 to 95% (non-condensing)
Input Voltage 12–56 VDC, Redundant Input (with 1 removable 6-contact terminal block)
100–240 VAC adapter (optional)
Power Consumption 5.76 watts at 48 VDC full load
Reverse Polarity Protection Yes
Housing Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
Dimensions 1.69W x 4.13D x 5.59H in. (43W x 105D x 142H mm)
Weight Unit Weight: 2.5 lbs.
Shipping Weight: 3.0 lb
Certifications FCC, CE, EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6KV; Air: 8K
VIEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV

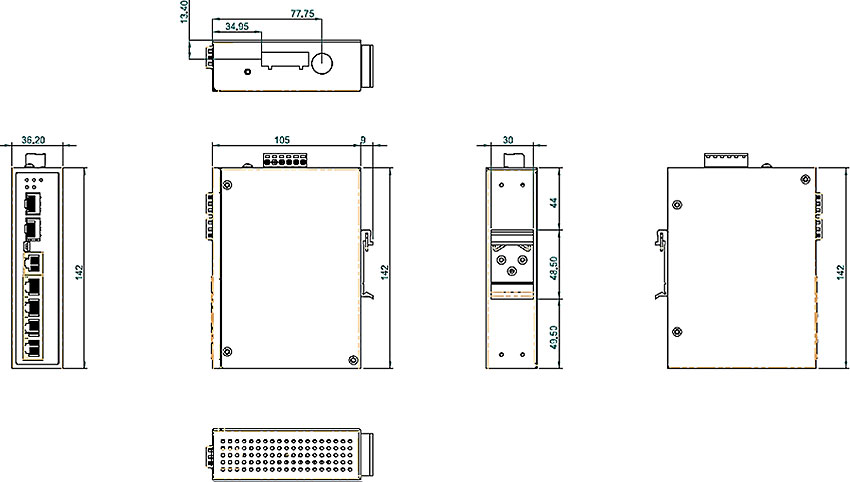

FP1005E dimensions

# Model # Description Availability
1 FP1005E/2SFP/DC Un-Managed Industrial Gigabit Ethernet Switch; 4 x 10/100/1000 (RJ45); 1 x GigE SFP, 1 x SFP/TX Combo, -40 to 75C; 12-48VDC redundant input General Availability
