Description

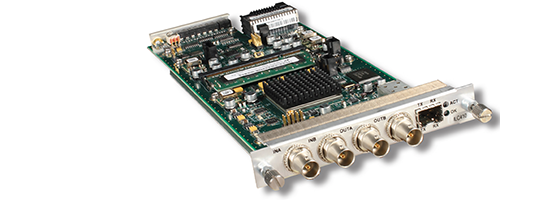

The ILC410 expands the InfinityLink video platform capabilities to include SMPTE standards-based video-over-IP transport for both DVB-ASI and SD-SDI formats.
Based on SMPTE 2022 standards for encapsulation and Forward Error Correction (FEC), the ILC410 enables SDI and ASI to be reliably transported across managed IP networks. The module is capable of transporting four channels (two in each direction) of DVB-ASI or SD-SDI over a gigabit Ethernet IP network connection.
SDI video is transported in its entirety, including all ancillary data. ASI video streams from less than 20 Mb/s to over 200 Mb/s are supported and can be rate limited.
The ILC410 FEC enables the recovery of lost, errored, or delayed IP packets and can withstand burst outages in excess of 3 ms.
Access to the IP network is through rear accessible, field replaceable SFPs either optically in WDM, CWDM , and DWDM wavelengths or electrically via an RJ-45 SFP.
InfinityLink IL6000 Chassis System
Applications
Single-module transceiver card for SD-SDI and DVB-ASI over Gig-E.
- Fully transparent carriage of SDI and SDTI
- Includes all SDI and SDTI ancillary information
- DVB-ASI stream rates from <20 Mb/s to >200 Mb/s
- Supports 188-byte and 204-byte DVB-ASI packets
- Provisionable limits on bandwidth for DVB-ASI
Four independent channels: two transmit, two receive.
Unicast or multicast IP video streams.
Standards-based encapsulation and Forward Error Correction.
- DVB-ASI
- SMPTE 2022-2 Encapsulation
- SMPTE 2022-1 FEC
- SDI
- SMPTE 2022-6 Encapsulation
- SMPTE 2022-5 FEC
- FEC recovers lost, errored, or delayed packets
- Withstands burst outages in excess of 3 ms
- Row and column FEC supported
Externally accessible SFP transceivers.
- Optical budget to 33 dB
- WDM (1310 nm, 1550 nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
- Electrical to RJ-45 Ethernet
Front panel monitoring of active video signals.
Remote management via InfinityLink Manager.
- No external software required
- HTTP or SNMPv2
- Monitor
- Configure
- Upgrade firmware
Network Interface – Optical
Type
SFP
Optical connectors
LC
Format
1000Base-LX, 1000Base-ZX
Network Interface – Electrical
Type
SFP
Connector
RJ-45
Data rate
1000 Mb/s
Format
1000Base-T
Video Interface
Formats
SD-SDI (SMPTE 259M) SDTI (SMPTE 305M) DVB-ASI
Channels
2 input and 2 output
Electrical Interface
Input
(2) BNC 75 Ohm
Output
(2) BNC 75 Ohm
Monitor (front)
HD-BNC 75 Ohm
Return loss
>15 dB, 5-270 MHz
Cable equalization for Belden 1694A type cable
0 to 250 meters (270 Mb/s)
Environmental
Operating temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity (non-condensing)
10 to 95%
Power dissipation
12 Watts
Physical Dimensions
0.8” x 5” x 10.8” (1 slot in InfinityLink chassis)
Regulartory Conformance
Compliance
CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
