Description

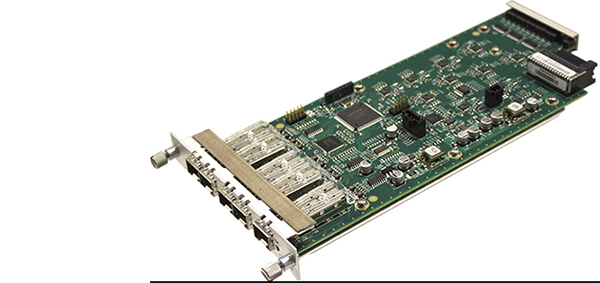

The DLC105 provides flexible media access to DigiLink chassis for routing, transport, and DA applications.
The DLC105 media access module features five bi-directional SFP cages for use as a media access point to the DigiLink chassis. These SFPs can be populated to support up to 5 video inputs and 5 video outputs, 5 HDMI ports, or any combination of each. The module can be deployed in the
DigiLink DL4360x chassis with the
DLX001 Switching and Routing Module to create a flexible 60×60 optical and electrical video router or for DA applications, or combinations for both.
Combining the DLC105 with transport and format conversion modules in the DigiLink chassis creates a cost and space effective solution for transport centric processing and routing of broadcast quality video signals.
Applications
Flexible SFP access to DigiLink chassis.
- Optical
- Electrical video (HD-BNC)
- HDMI
Uses industry standard SFP optics.
- Optical budget to 30dB
- WDM (1310nm, 1550nm)
- CWDM ITU G.694.2 (Channels 27-61)
Supports all standard video formats.
- 2.967 Gb/s 3G-SDI (SMPTE 424M)
- 1.485 Gb/s HD-SDI (SMPTE 292M)
- 270 Mb/s
- SD-SDI (SMPTE 259M-C, ITU 656)
- SDTI (SMPTE 305M)
- DVB-ASI
- 19.39 Mb/s ATSC (SMPTE 310M)
Re-clocked video to reduce jitter.
Front and rear panel status LEDs.
NEBS Level 3 Certified.
DLC105 Front Panel Status LED Display
DLC105 Rear Panel (SFP transceiver cages and status LEDs)
Environmental
Operating Temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity
10 to 95% (non-condensing)
Power dissipation
< 13 Watts
Physical
Dimensions
0.8” x 5” x 10.8”
(1 slot in DigiLink chassis)
Weight
<2 pounds, (1kg)
Video Interface
Signal Formats
3G-SDI (SMPTE 424M)
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M)
SDTI (SMPTE 305M)
DVB-ASI
Rates
270 Mb/s ±100ppm
1.485 Gb/s ± 100 ppm
1.485/1.001 Gb/s ± 100 ppm
2.970 Gb/s ± 100 ppm
2.970/1.001 ± 100 ppm
Other rates passed in bypass mode
Physical Interfaces
5 SFP Cages
See SFP Specifications
Regulatory Conformance
Compliance
NEBS Level 3, CSA 60950, EN60950,
EN55022 FCC Part 15 (Class A), CISPR 22
