|2178HSEE - Ethernet over VDSL2 Converter (Profile 30a)
Just wanted to say thanks so much, not only for the fantastic and knowledgeable technical support, but also for making the finest and easiest to use Ethernet extenders on the market.
3 installs in 3 very old malls were able to be completed with your devices and my customers couldn't be happier.
It's because of you and your product that I will always use and recommend to the many customers and companies I work for.
MDP Telecom, Inc.
100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution
The Data Connect 2178HSEE is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The 2178HSEE supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.
Implement with Existing Telephone Copper Wires
The 2178HSEE is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of 2178HSEE, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the 2178HSEE with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The 2178HSEE is ideal to be used as an Ethernet extender to an existing Ethernet network.
Delivers High-Demand Service Connectivity for ISP / Triple Play Devices
The 2178HSEE provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the 2178HSEE enables many Multi-Media services to work on local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.
Easy & Flexible Installation

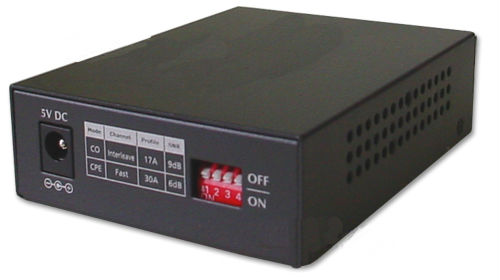

The Ethernet-over-VDSL2 Converter is plug-and-play design and fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The 2178HSEE offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode 2178HSEE and a CO mode 2178HSEE must be setup as one pair of converters to perform the connection.
Provides Superior Upstream and Downstream Transmission Performance
The 2178HSEE also defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the 2178HSEE is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the 2178HSEE is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.
Ethernet Distance Extension
Two 2178HSEE acting as a standalone pair is good for Ethernet distance extension over existing telephone wires. With just one pair of AWG-24 copper wire, you can easily connect two Ethernet networks together with the data rate of maximum 100/100Mbps. With the additional splitter, the telephone service can still be used while the 2178HSEE CO/CPE is in operation. The two solutions listed below are typical applications for the Ethernet over VDSL2 Converter.
MTU / MDU / Hospitality Solution
The 2178HSEE is a perfect solution to quickly provide cost-effective yet high speed network services to multi-unit buildings such as residential buildings (multi-dwelling units), commercial (multi-tenant units) buildings, hotels or hospitals. By utilizing the existing telephony infrastructure, network installation is straightforward and requires no new wiring. With up to 100/100Mbps transmission, Video on Demand, IP telephony and various broadband services can be easily provided.
Last Mile of FTTx Deployment
The 2178HSEE is an ideal solution for FTTx (Fiber to the Building, Fiber to the Campus or Fiber to the Node) applications. It supports high bandwidth VDSL2 over existing telephone wires in the €œlast mile€ from the ISP / Telecom / Service provider€™s fiber node to the buildings and customers' houses. The 10/100Mbps port of 2178HSEE can be directly connected to a PC or to Ethernet devices such as Ethernet Switches or Broadband Routers. It is excellent for phone line network built under Internet because every room or house could use the existing phone line to transmit data through the Internet and the whole building could share the Internet to the wider area network with minimum cost.
- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
- One box design, CO / CPE selectable via DIP Switch
- Defines symmetric band plan for the transmission of upstream and downstream signals
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards
- DMT (Discrete Multi-Tone) line coding
- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
- One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection
- Voice and data communication can be shared simultaneously based on the existing telephone wire
- One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
- VDSL2 stand-alone transceiver for simple bridge modem application
- Advantage of minimum installation time (Simply as Plug-and-Play)
- Selectable target profile and target SNR margin
- Supports extensive LED indicators for network diagnosis
- Co-work with Data Connect MC family Media Chassis (MC-700 / MC-1500/ MC-1500R)
- Compact in size, easy installation
