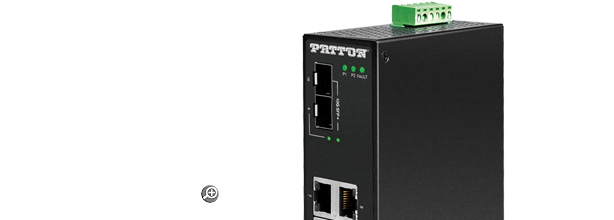

FiberPlex FP1108E Un-Managed Industrial 10 Gig Ethernet Switch 10 Port, 8 Copper 10/100/1000 + 2 x 10 GigE SFP; industrial packaging

FiberPlex FP1108E Un-Managed Industrial 10 Gig Ethernet Switch 10 Port, 8 Copper 10/100/1000 + 2 x 10 GigE SFP; industrial packaging

Category: Tags: , , ,
Brand: Fiberplex

$3,179.00

Description

Patton’s FP1108E Un-Managed Industrial 10 Gig Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The FP1108E is housed in a sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include eight port 10/100/1000 Ethernet ports on RJ45 connectors and two 10G SFP+ cages that can be utilized for fiber trunk connections. To ensure operation in harsh environments the FP1108E provides additional EFT and ESD protection to prevent any unregulated voltage or harmful transients and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

SFP Ordering Information
Fiber SFP Data Module
Copper SFP Modules

Applications

FiberPlex™ 1108E application diagram

  • Supports auto MDI/MDI-X function
  • 10 ports include 8 10/100/1000TX RJ45 ports and 2 10-Gig SFP+ cages
  • Store-and-forward switching architecture
  • 20-Gbps backplane (switching fabric)
  • 16K MAC address table
  • 9,216 bytes Jumbo frame supports
  • ESD protection: 6,000 VDC support
  • Redundant power input design: 12–48 VDC
  • Built-in relay output for power failure detection
  • Surge protection: 2,000 VDC support
  • Operating temperature range—EOT: -40 to 75°C
  • IP30 rugged metal case design
  • DIN-rail and wall mount support
Ethernet Port 10 ports include 8 10/100/1000TX RJ45 ports and 2 10-Gig SFP cages
Fiber Port Wavelength: Refer to SFP+ modules at patton.com/SFP-OC
2 10-Gig SFP cages
Standards IEEE 802.3 10Base-TX Ethernet IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-TX
IEEE 802.3ae 10 Gigabit Ethernet
Flow Control IEEE 802.3x back pressure flow control
Switching Architecture BackPlane: Non-Blocking Switching Fabric
Transfer Rate 14,880 pps for Ethernet Port
148,800 pps for Fast Ethernet Port
1,488,000 pps for Gigabit Ethernet Port
14,880,000 pps for 10 Gigabit Ethernet Port
Jumbo Frame 9,216 bytes
MAC Table Size 16K
Memory Buffer 12 Mbits
Processing Type Store and Forward
Network Cable 10Base-TX: 2-pair UTP/STP Cat. 3,4,5
100Base-TX: 2-pair UTP/STP Cat. 5
1000Base-TX: 2-pair UTP/STP Cat. 5/5E
Free fall / Shock / Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Power Input 12–48 VDC, Redundant Input
100–240 VAC adapter (optional)
Power Consumption 16 Watts
Relay 24 VDC, 1A resistive
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95%, (non-condensing)
Housing / Mounting Metal, IP30 protection / DIN-Rail, wall mounting (optional)
Dimensions 2.12W x 3.89D x 5.59H in. (54W x 99D x 142H mm)
Weight Unit Weight: 2.5 lbs. Shipping Weight: 3.0 lbs
Certifications FCC, CE
EMI FCC Part 15 Subpart B Class A, CE EN 55022 Class A
EMS IEC61000-4-2,3,4,5,6,8

# Model # Description Availability
1 FP1108E/2SFP/DC Unmanaged Industrial 10 Gig Ethernet Switch; 8 x 10/100/1000; 2 x 10GigE SFP; -40 to 75C; 12-48VDC input Pre-Order Available

 Accessories
