Description

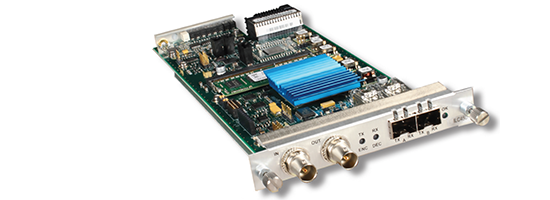

Integrating seamlessly within the InfinityLink platform, the ILC450 module is customer configurable via InfinityLink Manager or via SNMPv2 as either a Video-Over-IP Transmitter (TX mode) or a Video-Over-IP Receiver (RX mode).
In TX mode, the ILC450 packetizes the video to SMPTE 2022-6 or 2022-2 encapsulation standards and provides users with flexible SMPTE 2022-5 or 2022-1 FEC configurations to maximize reliability and minimize latency and overhead.
In RX mode, its robust multi-pass FEC correction algorithm and user configurable packet buffering enable reliable performance over less than ideal Ethernet links.
The card utilizes SMPTE 2022-1/2 or 5/6 Video-Over-IP Standards for transport of HD/SD-SDI, ASI video and includes a Gig-E IP interface to bridge IP data over the 10 Gig Ethernet IP interface.
The ILC450 sets the bar for reliable, low cost, and easy to configure HD/SD-SDI, ASI, and Gig-E transport over IP.
InfinityLink IL6000 Chassis System
Applications
Video Over IP.
- Video-Over-IP Transport of HD/SD-SDI and ASI.
- Single module user configurable as a transmitter or receiver.
- Fully transparent carriage of HD/SD-SDI, and ASI including audio and ancillary data.
- Gig E data bridged over 10G interface.
Automatic rate selection.
- 1.485 Gb/s HD-SDI (SMPTE 292M).
- 270 Mb/s SD-SDI (SMPTE 259M-C, ITU 656).
- >DVB-ASI.
Standards-based encapsulation and forward error correction.
- SMPTE 2022-6 IP Encapsulation of HD and SD-SDI.
- SMPTE 2022-2 IP Encapsulation of DVB-ASI.
- SMPTE 2022-5 FEC recovers lost, damaged, or delayed packets of HD and SD SDI.
- SMPTE 2022-1 FEC recovers lost, damaged or delayed packets of ASI.
Flexible user configurable FEC and buffering setting.
- Selectable transmitter row and column Forward Error Correction settings.
- Selectable receiver buffering.
- Designed to withstand burst outages in excess of 3 ms.
Supports unicast or multicast streaming.
Externally accessible SFP+ transceiver.
- WDM (1310 nm, 1550 nm).
- CWDM ITU G.694.2 (Channels 27-61).
- DWDM ITU G.694.1 (Channels 21-60).
Externally accessible SFP transceiver.
- Optical budget to 33dB.
- WDM (1310nm, 1550nm).
- CWDM ITU G.694.2 (Channels 27-61).
- DWDM ITU G.694.1 (Channels 21-60).
Front panel HD-BNC monitor 1G Ethernet SFP Electrical/Optical Interface Auto-Negotiable to 10/100/1000 Configure, monitor, and manage via on-board InfinityLink Manager or SNMPv2 Low power design consumes a single function slot in a InfinityLink chassis.
Environmental
Operating temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity (non-condensing)
10 to 95%
Power dissipation
17 Watts
Physical
Weight
<2 pounds, (1kg)
Dimensions
0.8” x 5” x 10.8” (1 slot in InfinityLink chassis)
1 slot in DigiLink chassis
Video Interface
Formats
HD-SDI (SMPTE 292M)
SD-SDI (SMPTE 259M-C, ITU 656)
DVB-ASI
Electrical Interface
Input
Rear BNC 75 Ohm
Output
Rear BNC 75 Ohm
Front HD-BNC 75 Ohm
Return loss
>15 dB, 5-1485 MHz
Cable equalization for Belden 1694A type cable
0 to 100 meters (1,485 Gb/s)
0 to 250 meters (270 Mb/s)
10G Network Interface
Type
Ethernet SFP+
Optical Connectors
LC
Format
10 Gig-E
Gig E Network Interface
External SFP
1 (Optical or RJ45)
Internal
1 to other modules in InfinityLink chassis
Data Rates
10/100/1000 Ethernet
Regulatory Conformance
Compliance
CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
