Artel FiberLink 3620A Series Composite Video & Stereo Audio over Fiber

Artel FiberLink 3620A Series Composite Video & Stereo Audio over Fiber

Categories: , , Tags: , , , , ,
Brand: Artel

$893.89

Description

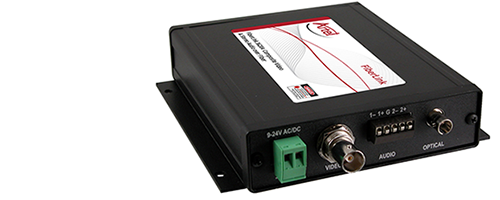

The Fiberlink 3620A Series transmits composite video and two independent audio channels over one multimode or single mode fiber. It is ideal for Videoconferencing, Broadcast and Cable TV and Digital Signage applications.

System consists of transmitter and receiver unit; card or box version.  The Card version fills one slot in 6000A card cage.
Video channel is compatible with NTSC, PAL or SECAM video standards.  10 MHz video bandwidth.
Two audio channels that may be user-configured for balanced or unbalanced inputs and outputs.  Switch selectable audio output gain boost of +0 dB or +6 dB.  Indicator LEDs monitor power, video and audio signals.  Transmits over one multimode or single mode fiber.  No adjustments; pure digital processing and transmission.
Wide range power supply allows operation from both AC and DC sources.  Power supply, must be purchased separately.

Applications

  • Stereo Audio – This product transmits two channels (stereo) of audio.
  • Single Mode and Multimode Fiber – This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks.
  • Transmit & Receive – 3620A = Transmit.  3621A = Receive
  • Box and Card – This product is available in a box or card configuration.

# Model # Description Availability
1 3620A-B7S FiberLink, Model 3620A-B7S, Fiberlink Composite Video (1ch) + Analog Audio (2ch), 1310nm, SM and MM, 1 fiber, Tx – Box Pre-Order Available
2 3621A-B7S FiberLink, Model 3621A-B7S, Fiberlink Composite Video (1ch) + Analog Audio (2ch), 1310nm, SM and MM, 1 fiber, Rx – Box Pre-Order Available
