Description

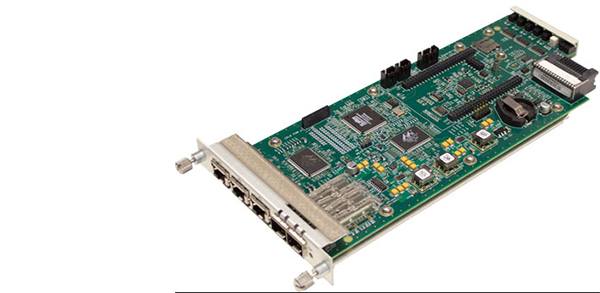

The innovative design of the DLC205 Gig-E Aggregator and Optical Transceiver enables users to aggregate 9 channels, 5 external and 4 internal, of 10/100/1000 Ethernet traffic for transport across electrical or optical networks, all in a low cost, single slot DigiLink module.
The module is fully nonblocking with a total capacity of 18 Gigabits of traffic and each port independently supports 10/100/1000 Ethernet. The four internal ports can be linked to other modules in a DigiLink chassis to provide internal Ethernet connectivity eliminating the need of external cabling. The DLC205 can be monitored and managed using DigiLink’s DL-Manager Element Management System.
Unlike more complicated designs that require dedicated trunking modules and switching matrixes, the DLC205 Gig-E Aggregator is compatible with all DigiLink chassis providing a simple, reliable, and low-cost solution for transporting video centric traffic and chassis management across Ethernet networks.
Applications
Aggregate up to nine 10/100/1000 Ethernet links.
Non-blocking 18 Gigabit of switching capacity.
Provides optical or electrical transport of:
- 10Base-T
- 100Base-TX
- 1000Base-T
- Ethernet standard
Supports all types of Ethernet traffic.
- 10/100/1000 auto negotiate
- Auto MDI/MDI-X
- Auto full-duplex and half-duplex
- VLAN capabilities
Externally accessible SFP transceiver optics.
- Optical budget to 33dB
- WDM (1310nm, 1550nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
Front and rear panel status LEDs.
- Major/minor alarms
- Link status
- Activity
Statistics per RFC 2819 Standard.
Simple and rugged design.
- Plug and play design requires no pre-deployment configuration
- Monitor, manage, and review statistics using DL-Manager or SNMPv2
- NEBS Level 3 Certified ensures reliable operation in harsh environments
DLC205 Front Panel Status LED Display
DLC205 Rear Panel (Three Ethernet RJ-45 and Two Ethernet SFPs)
Environmental
Operating Temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity
10 to 95% (non-condensing)
Power dissipation
< 6 Watts
Physical
Dimensions
0.8” x 5” x 10.8”
(1 slot in DigiLink chassis)
Weight
<2 pounds, (1kg)
Interface
External Electrical
Rear (3) RJ-45
External SFP
2 (Optical or RJ-45)
Internal
4 to other modules in
DigiLink chassis
Data Rates
10/100/1000 Ethernet
Regulatory Conformance
Compliance
NEBS Level 3, CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
