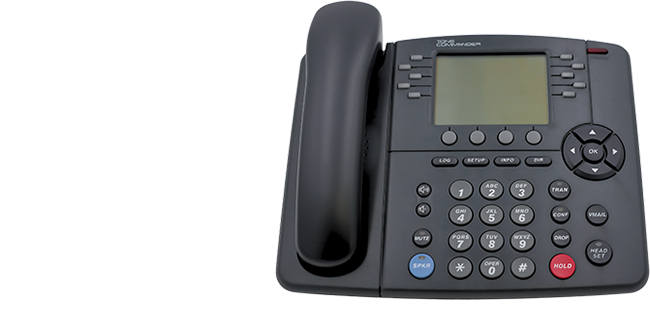

Tone Commander TC7910-TSG TSG-6 SIP Phone

Tone Commander TC7910-TSG TSG-6 SIP Phone

Category: Tags: , , , , ,
Brand: Tone Commander

Description

The Tone Commander 7910-TSG is a CNSS certified secure GigE SIP phone that comes with three (3) Switched Gigabit Ethernet ports including two network facing ports supporting flexible direct Fiber connectivity via SFP modules and copper POE ethernet port, plus an additional copper ethernet PC port.The units meet the stringent requirements specified in the CNSS (Committee on National Security Systems) Instruction No. 5000 and 5001. They have been tested for compliance and approved by the National Telecommunications Security Working Group. TSG-6 Class A versions are not dependent on any other equipment for on-hook security. They may be used in standalone applications within a secure area. The Class B version must be connected to an Ethernet switch collocated within the SCIF.



Tone Commander TSG-6 products meet the requirements of the Intelligence Community Technical Specification ICD/ICS 705 for Sensitive Compartmented Information Facilities (SCIF), prepared by the National Counterintelligence Executive, which replaced DCID 6/9.



The 7910 supports Secure Real-time Transport Protocol (SRTP), Transport Layer Security (TLS), Hypertext Transfer Protocol Secure (HTTPS) and digitally signed tamper-proof firmware; and supports both IPv4 and IPv6 transport.



Push-to-Talk (PTT) capabilities improve clarity of communication, enhance sound quality and improves perceptibility of spoken words by eliminating unnecessary background noise.  PTT also prevents SCI background conversations from being inadvertently transmitted onto unrelated calls or conferences.



Supports HTTP-Enabled Location Delivery (HELD) protocol to enable granular location information retrieval for emergency services.



Approved by the Department of Defense (DoD) Unified Capabilities (UC) Approved Products List (APL), as a voice only, Assured Services Session Initiation Protocol (AS-SIP) End Instrument (AEI).  The units are designed for universal SIP compliance and have been certified on Tone Commander, Redcom, NEC, Genband/Ribbon, Unify, and Avaya platforms, and field tested on Cisco, Asterisk, and BroadSoft platforms.



Desk or wall mount enclosures with dedicated headset port with headset control key make the unit easy to install and mass secure auto-provisioning is available using HTTPS.

TSG-A Ports
TSG-B Ports
  • Made in USA – The only APL and CNSS/TSG certified SIP phone fully designed, developed, and fully manufactured in the USA ensuring source & origin security.
  • TSG-6 Class A and B – Positive metallic disconnect for on-hook audio security. TSG-6 Class A for direct on-hook security and Class B for connection to an Ethernet switch collocated within the SCIF.
  • POE, GigE and SFP Connectivity – Three Switched 10/100/1000 Ethernet ports including two Network Ports supporting flexible direct Fiber connectivity via SFP modules and a Copper POE ethernet port, plus a copper ethernet PC port.
  • Next-Gen e911 Support – Supports HTTP-Enabled Location Delivery (HELD) protocol the phone provides responders with precise geodetic coordinates compliant with DoD Standards.
  • Highly Secure – Secure Real-time Transport Protocol (SRTP), Transport Layer Security (TLS), Hypertext Transfer Protocol Secure (HTTPS) and digitally signed tamper-proof firmware.
  • SIP and AS-SIP – IETF RFC 3261 compliant SIP and Certified Assured Services SIP End Instrument (AEI) with MLPP (Multilevel Precedence and Preemption).
  • Push-to-Talk – Standard and Push-to-Talk Handset Options available. An extra headset port allows use of standard compatible headsets.
  • Universal Codec Support – Includes G.723.1, G.726/G.727, G.729A/B, Opus (MS Teams), AGC, and iLBC.
  • Large Graphic Display – High resolution 320 x 240-pixel LCD.
  • Multi-Function Keys – Ten (10) desi-less programmable multi-function line or feature keys. “Desi-less means designations are available on the LCD for customization. Optional 30-button Expansion Module.
  • Automated Provisioning – Mass secure provisioning using HTTPS.
  • Easy Install – Desk or wall mount enclosure with dedicated headset port with headset control key.
  • Fully DoD Compliant – Listed on the DoD Approved Products List (APL). IPv4/IPv6 Dual Stack with AES-128 secure RTP voice encryption and Secure TLS signaling encryption. CNSS 5001 complaint.
DoD Security Compliance
  • CNSS (Committee on National Security Systems) Instruction No. 5000 and 5001
  • National Telecommunications Security Working Group. TSG-6 Class A and Class B
  • Assured Services SIP (AS-SIP)
  • Multi-Level Precedence & Preemption (MLPP)
  • Secure Real-time Transport Protocol (SRTP)
  • Transport Layer Security (TLS)
  • Hypertext Transfer Protocol Secure (HTTPS)
  • IPv4/IPv6 dual stack
Standards Compliance
  • FCC Part 15
  • Hearing Aid Compatible
  • Section 508 Compliant
  • UL, cUL Listed
Protocol Support
  • SIP Standard (IETF RFC3262+)
  • Codecs: G.711u, G.711A, G.722, G.729A
  • QoS (IEEE 802.1q VLAN tagging, DSCP)
  • LLDP and LLDP-MED (Link Layer Discovery Protocol for Media Endpoint Devices)
  • IEEE 802.1X access control protocol
  • SLA/BLA Support Shared/Bridged Line Appearance
Network Compatibility
  • Network Port 1: 10/100/100 Hot-swappable SFP port
  • Network Port 2: 10/100/1000BaseT Ethernet (PoE 802.3af)
  • PC Port: 10/100/1000BaseT Ethernet
  • Handset / Headset Port RJ9 Interface / RJ9 Interface
Power Requirements
  • Power over Ethernet: 802.3af Class 2
  • Optional Local Power: 12VDC nominal @ 1A max
Physical
  • Dimensions: 3.5″ H x 9.6″ W x 8″ D, excluding handset
  • Weight: 2.3lbs., including stand and handset
Environmental
  • Operating Temperature: 32 to 104 F (0 to 40 C)
  • Storage Temperature: 32 to 122 F (0 to 50 C)
  • Humidity: 5% to 95% non-condensing

# Model # Description Availability
1 TC7910/TSGA/PTT/SFP/POE Tone Commander 7910-TSGA, TSG-6 Class A, IP Phone with Push-to-Talk Handset, AS-SIP, 10 Lines, GigE Copper PoE and GigE SFP Network Ports and, GigE Switched PC Port. US Made. Pre-Order Available
2 TC7910/TSGA/SFP/POE Tone Commander 7910-TSGA, TSG-6 Class A, IP Phone, AS-SIP, 10 Lines, GigE Copper PoE and GigE SFP Network Ports and, GigE Switched PC Port. US Made. Pre-Order Available
3 TC7910/TSGB/PTT/SFP/POE Tone Commander 7910-TSGB, TSG-6 Class B, IP Phone with Push-to-Talk Handset, AS-SIP, 10 Lines, GigE Copper PoE and GigE SFP Network Ports and, GigE Switched PC Port. US Made. Pre-Order Available
4 TC7910/TSGB/SFP/POE Tone Commander 7910-TSGB, TSG-6 Class B, IP Phone, AS-SIP, 10 Lines, GigE Copper PoE and GigE SFP Network Ports and, GigE Switched PC Port. US Made. Pre-Order Available
