Description

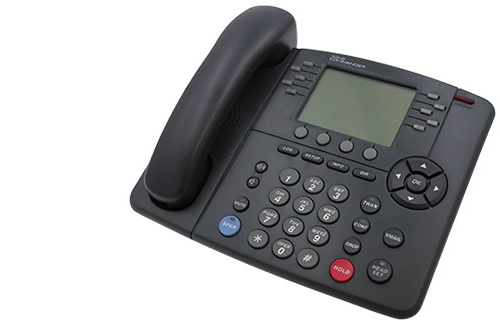

The Tone Commander 7110 Gigabit Ethernet SIP Phone offers both POE-Powered Copper and Fiber (SFP) Network Ports as well as local 10/100/1000 switched PC Ethernet port. The device is 100% US manufactured, feature-rich, and designed as an executive-level desk phone for state, local, education power users.
The 7110 supports Secure Real-time Transport Protocol (SRTP), Transport Layer Security (TLS), Hypertext Transfer Protocol Secure (HTTPS) and digitally signed tamper-proof firmware; and supports both IPv4 and IPv6 transport.
Push-to-Talk (PTT) capabilities improve clarity of communication, enhance sound quality and improve perceptibility of spoken words by eliminating unnecessary background noise. PTT also prevents SCI background conversations from being inadvertently transmitted onto unrelated calls or conferences.
Supports HTTP-Enabled Location Delivery (HELD) protocol to enable granular location information retrieval for emergency services.
The secure SIP phone comes with three (3) Switched Gigabit Ethernet ports including two network facing ports supporting flexible direct Fiber connectivity via SFP modules and copper POE ethernet port, plus an additional copper ethernet PC port.
Powered by the Patton Cloud, the unit can be securely and automatically provisioned, managed, monitored and orchestrated in mass from a central location. It is also easy to install with its desk or wall mount enclosure; and easy to use thanks to a dedicated headset port with headset control key.
The unit comes with a large high resolution 320 x 240-pixel graphic display. Ten (10) desi-less programmable multi-function line or feature keys enable customization to customer use-cases.
8030X Button Expansion Module
An optional 8030x expansion module increases the number of features and speed dial keys to 40 (adds 30), offering rapid access to the numbers and features you use most. The additional multifunction keys can be set up as Call Appearance keys, speed dial keys, Direct Station Select keys, or Feature Activator keys. All multifunction keys have both red and green lamp indicators for easy status viewing. This module is ideal for answering positions and high-density key applications. One 8030X per telephone is supported.
Networking Interfaces.
 |
 |
