Description

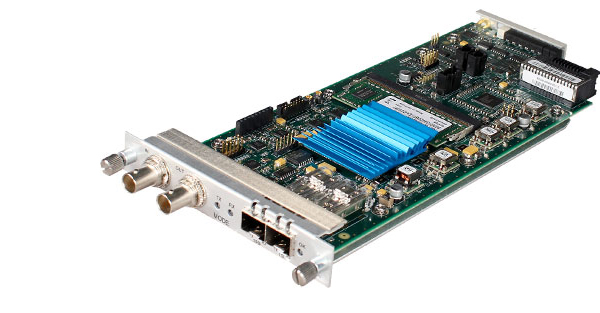

The DLC450 utilizes SMPTE 2022-1/2 or 5/6 Video-Over-IP Standards for transport of HD/SD-SDI, ASI video and includes a Gig-E IP interface to bridge IP data over the 10 Gig Ethernet IP interface.
Integrating seamlessly within the
DigiLink platform, the DLC450 module is customer configurable via
DigiLink Manager or via SNMPv2 as either a Video-Over-IP Transmitter (TX mode) or a Video-Over-IP Receiver (RX mode).
In TX mode, the DLC450 packetizes the video to SMPTE 2022-6 or 2022-2 encapsulation standards and provides users with flexible SMPTE 2022-5 or 2022-1 FEC configurations to maximize reliability and minimize latency and overhead.
In RX mode, its robust multi-pass FEC correction algorithm and user configurable packet buffering enable reliable performance over less than ideal Ethernet links.
The DLC450 sets the bar for flexible, reliable, and easy-to-configure HD/SD-SDI, ASI, and Gig-E transport over IP.
Applications
Video-Over-IP Transport of HD/SD-SDI and ASI.
Single module user configurable as a transmitter or receiver.
Fully transparent carriage of HD/SD-SDI, and ASI including audio and ancillary data.
Gig E data bridged over 10G interface.
Automatic rate selection.
- 270 Mb/s SD-SDI (SMPTE 259M-C, ITU 656).
- 1.485 Gb/s HD-SDI (SMPTE 292M).
- DVB-ASI.
Standards-based encapsulation and forward error correction.
- SMPTE 2022-6 IP Encapsulation of HD and SD SDI.
- SMPTE 2022-2 IP ENCAPSULATION of DVB-ASI.
- SMPTE 2022-5 FEC recovers lost, damaged, or delayed packets of HD and SD SDI.
- SMPTE 2022-1 FEC recovers lost, damaged or delayed packets.
Flexible user configurable FEC and buffering setting.
- Selectable transmitter row and column Forward Error Correction settings.
- Selectable receiver buffering.
- Designed to withstand burst outages in excess of 3 ms.
Supports unicast or multicast streaming.
Externally accessible SFP+ transceiver.
- WDM (1310 nm, 1550 nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
Externally accessible SFP transceiver.
- Optical budget to 33dB
- WDM (1310nm, 1550nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
Front panel HD-BNC monitor.
1G Ethernet SFP Electrical/Optical Interface Auto-Negotiable to 10/100/1000.
Configure, monitor, and manage via on-board DigiLink Manager or SNMPv2.
Low power design consumes a single function slot in a DigiLink chassis.
Environmental
Operating temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity (non-condensing)
10 to 95%
Power dissipation
17 Watts
Physical
Weight
<2 pounds, (1kg)
Dimensions
0.8” x 5” x 10.8” 1 slot in DigiLink chassis
Electrical Interface
Input
Rear BNC 75 ohm
Output
Rear BNC 75 ohm Front HD-BNC 75ohm
Return loss
>15 dB, 5-1485 MHz
Cable equalization for Belden 1694A type cable
0 to 100 meters (1.485 Gb/s) 0 to 250 meters (270 Mb/s)
Video Interface
Formats
HD-SDI (SMPTE 259M) SD-SDI (SMPTE 259M, ITU 656) DVB-ASI
10G Network Interface
Type
Ethernet SFP+
Optical Connectors
LC
Format
10 Gig-E
Gig E Network Interface
Data Rates
10/100/1000 Ethernet
External SFP
1 (Optical or RJ45)
Internal
1 to other modules in DigiLink Chassis
Regulatory Conformance
Compliance
NEBS Level 3, CSA 60950 EN60950, EN55022 FCC Part 15 (Class A) CISPR 22
