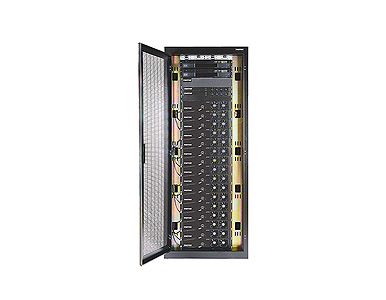

Patton SmartNode SN10300/SWITCH/UI

SKU: 4654 Category:

$4,273.23

Description

Overview





The SN10300/SWITCH/UI is a T1/E1/DS3/STM1/PRI/SS7 SmartNode SmartMedia Gateway HP Proview IP Switch.

 As service providers add VoIP capabilities over their SS7/sigtran networks, they reduce costs when interconnecting with other carriers, cost-effectively build out their network footprints, and transport voice traffic over SIP-over-IP backbones. As a viable replacement for the recently EOL Cisco PGW 2200 SS7/C7 solution, the SmartNode 10300 Series SS7 media gateway enables VoIP services delivery over traditiona time-division multiplexing (TDM) networks. The built-in sigtran SS7 protocol stack bridges voice traffic between the public switched telephone network (PSTN) and advanced SIP-over-IP networks Positioned in the network core or edge, SmartNode SS7 gateways enable service providers to transition to SIP-over-IP VoIP telephony while maintaining the quality and the reliability of traditional TDM networks that use the SS7 Sigtran protocol.

TDM interfaces

Service providers, whether providing local, long-distance or international voice services, are interconnected with a multitude of other providers using T1/E1/J1, DS3 or STM-1 links. It is critical for service providers to be able to rapidly establish new interconnections without having to always deploy new devices. SmartNode 10300 Series media gateways therefore offer flexibility and can be configured to support T1/E1/J1, DS-3 or STM-1 interfaces.

Signaling and control protocols

Just as flexibility in the selection and deployment of TDM links is a key requirement for service providers, the need to support multiple signaling protocols across various carrier partners is just as important. Each SN10300 media gateway provides support for the concurrent use of ISDN, SS7/C7, CAS (R2), SIP, and SIGTRAN signaling in the same device. The ability to provide both switching and conversion across multiple TDM and IP signaling protocols at once is paramount to enabling the operational flexibility and cost savings that drive service providers to expand their carrier relationships and converge their networks.

In parallel with the TDM and IP signaling protocols mentioned above, SN10300 devices also support the H.248 media gateway control protocol, which enables any H.248-compliant third-party softswitch to control a media gateway. While the softswitch manages call control interactions, the SN10300 handles transmission of call media as well as any required transcoding.

Media handling

Service providers will use one or more codecs on their VoIP networks according to their desire to save bandwidth, to provide a certain level of voice quality, or simply to interoperate with other VoIP devices or providers. The ability to support multiple different concurrent codecs and to allocate them in real time based on traffic is the key to delivering true network convergence.

SmartNode 10300 gateways feature extensive support for various wireline, mobile and IP telephony audio formats, delivering seamless transcoding in real-time. The media gateways ship with support for G.711, G723.1, G.726, and G.729ab right out of the box, with no additional license fee required. They also offer optional support for mobile and IP vocoders such as AMR, AMR-WB (G.722.2), GSMFR/ GSM-EFR, EVRC/QCELP, G.728, G.729eg, and iLBC. SN10300 gateways offer independent dynamic codec selection per channel. This means that it is possible to assign different vocoders to different channels, on a channel-by-channel basis. The devices can then run all of these codecs concurrently and do so with no impact on system performance.

SN10300 gateways also provide unparalleled support for Internet-based fax, also known as Fax over IP or Fax relay, using the T.38 protocol, which is used to carry fax communications over an IP network. (They also support the T.30 protocol for fax over the PSTN.)

System density

SN10300 gateways feature the industry’s highest system density in a 2U form factor. Beside the capital savings achieved by purchasing less units of equipment, system density also provides operational cost savings in the form of reduced co-location fees as well as lower power and cooling costs.

Energy efficiency

For many, if not most, service providers, the payoff from reducing energy use can be particularly impressive; typically, for every watt of power required to operate a device, another watt is required to cool it. The SN10300 media gateways can play a major role in reducing energy costs, with an average two-thirds less power consumption than competing products of similar capacity.

Provisioning and maintenance

For network convergence efforts to contribute positively to revenue and profitability, service providers must maintain their reputation for uptime and availability during the introduction, operation, and maintenance of new services. The SN10300 offers an operations, administration, maintenance, provisioning (OAM&P) solution. OAM&P enables the service provider to perform the initial setup of the SN10300 media gateway and any subsequent maintenance operations. These range from the simple, such as the collection of statistics and alarms, to the more complex, such as system configuration changes, the addition of new hardware or software components, and the application of software patches or software upgrades.



Applications



In the Enterprise market, SmartNode now offers a solution to the large Enterprise. We are substantially increasing TDM/digital port density to be the best and most reliable high-density Media Gateway going from 512 up to 32,768 VoIP calls. Now SmartNode offers from 1 analog port to up to 1024 T1/E1 or 48 DS3 or 16 STM-1 in a single box or a single system. The SmartNode 10300 is a key component for business trunking, call center, and transcoding solutions for the Enterprise.





Enterprise Application



In the Carrier market, the SmartNode has become a preferred advanced CPE and the SmartNode 10300 expands the portfolio with a high traffic CPE.

In addition, the SmartNode 10300 expands our reach onto the Carrier as the Media Gateway is a key component for applications at the Carrier operational level as well as in connecting advanced value-added services.

Additional information

Weight 2.00 lbs
Dimensions 5.00 × 5.00 × 5.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Features

  • 16 to 1024 x T1/E1/J1, 1 to 48 DS3, or 1 to 16 OC3/STM-1—Highest system density in the market means the lowest cost per port; up to 66% rack and space cost savings
  • 512 to 32,768 VoIP channels (field upgradable)—Simple field upgrade by 16 T1/E1 and 512 VoIP channels or 1 DS3 and 672 VoIP channels or 1 STM-1 and 2,016 VoIP channels.
  • Increased system up-time—SS7 link redundancy, dual power supply support, field-upgradable components
  • Low operating expense (up to 80% cost savings) significantly improves ROI—Low power consumption (150 W for the SN10300 at full capacity)
  • Connect with confidence to diverse VoIP endpoints and IP fax—Extensive media handling support for wireline, wireless and fax codecs

Specifications

Capacity and voice processing VoIP channels 512 to 32,768
PSTN interfaces 1 to 16 OC3/STM1** with APS (automatic protection switching) * 1 to 48 DS3 * Dual RJ48C for BITS or T1/E1 for signaling
VoIP interfaces Dual 100/1000Base-T * RJ45 connectors on rear of unit
Vocoding Universal codecs: G.711, G.723.1, G.726, G.729ab, T.38 * Other codecs: G.722.2 (AMR-WB), G.728, G.729eg, iLBC, clear mode (RFC 4040))
Fax/Modem/Data T.38 fax relay (V.17 and V.34) * Automatic G.711 fallback * Modem and data pass-through
DTMF relay RFC 2833, SIP INFO Method, In-band
Echo cancellation G.168 echo cancellation * 128 ms echo tail on all channels simultaneously
Voice processing Dynamic and programmable jitter buffer (20 to 200 ms) * Voice activity detection (VAD) * Comfort noise generation (CNG)
Management interfaces Dual 100/1000Base-T for OAM&P
Simultaneous signaling support SIP Supported RFCs: 2327, 2976, 3261, 3262, 3263, 3264, 3311*, 3323*, 3325*, 3398, 3515*, 3578*, 3764, 3891, 4028 (*partial compliance)
SIGTRAN M2PA, M2UA, M3UA, IUA?* SS7 termination and/or relay supported
SS7 Up to 64 x MTP2 links (56, 64, n x 56/64 kbps, HSL) * Multiple redundant MTP2 links * Up to 64 MTP3 originating point codes and linksets * ISUP variants: ITU 92, ITU 97, ANSI 88, ANSI 92, ANSI 95, Telcordia 97, ETSIv2, ETSIv3, China, Singapore, UK Brazil
ISDN PRI Q.931 ISDN PRI: NI-2, 4ESS, 5ESS, DMS-100, DMS-250, Euro ISDN ETSI NET5 (France, Germany, UK, China, Hong Kong, Korea), NTT (Japan), Australia
CAS MFC R2 (standard ITU, Brazil) *Customizable protocol script files
SmartNode-CONTROL Standalone call control Any to any call routing (TDM-VoIP, TDM-TDM, VoIP-VoIP with transcoding) * Call routing based on: trunk group, calling/called numbers, nature of address, ASR, time of day, load-based, cost-based, TO:, FROM: Request URI, redirect numbers, and other parameters * NPA-NXX routing (100k+ table entries, Excel or CVS file upload) * Route retries * Call transfer (REFER, AT&T TR 50075)
H.248 (MEGACO) call control ITU-T H.248 versions 1 and 2 * UDP, SCTP, IPsec transport * DTMF and fax detection * DTMF, announcements and call progress tone generation * Call quality and inactivity alerts
Session management and billing SIP peer availability polling * RTP inactivity monitoring *CDR generation (RADIUS and text file)
OAM&P Operation & Administration Web-based system status and operations * SNMP v2/v3 GET, TRAPs and alarms * Dynamic configuration changes
Maintenance Web-based interface for maintenance * Automated system upgrade * System backup, restore and copy
Provisioning Web-based interface for configuration * Dynamic activation
Troubleshooting Per-call tracing (history and/or live) * Signalling capture tools * SSH command-line interface)
Electrical characteristics Power input 90 to 260 VAC, 47 to 63 Hz * -40 to -60 VDC * Redundant power supply with dual power inputs
Physical characteristics Dimensions 4U to 39U VoIP Gateway
Each 2U is 3.5H x 17.4W x 16D in. (88.9H x 442W x 406D mm)
Weight 20 lbs (9.1 kg)
Regulatory compliance UL/CSA 60950, CSA C22.2 EMC: FCC Part 15:2009, Subpart B, CE Mark (EN55022:2006, Class A, EM60950, EN61000, ETS 300 386)
Environmental Operating temp: 0 to +55 C, 95% relative humidity, non-condensing
Storage temp: -10 to +75 C, 95% relative humidity, non-condensing
NEBS Level 3 compliant
RoHS compliant

Ordering Information

# Model # Description Availability
  SN10300/SWITCH/UI T1/E1/DS3/STM1/PRI/SS7 SmartNode SmartMedia Gateway HP Proview IP Switch Special Order
