Description

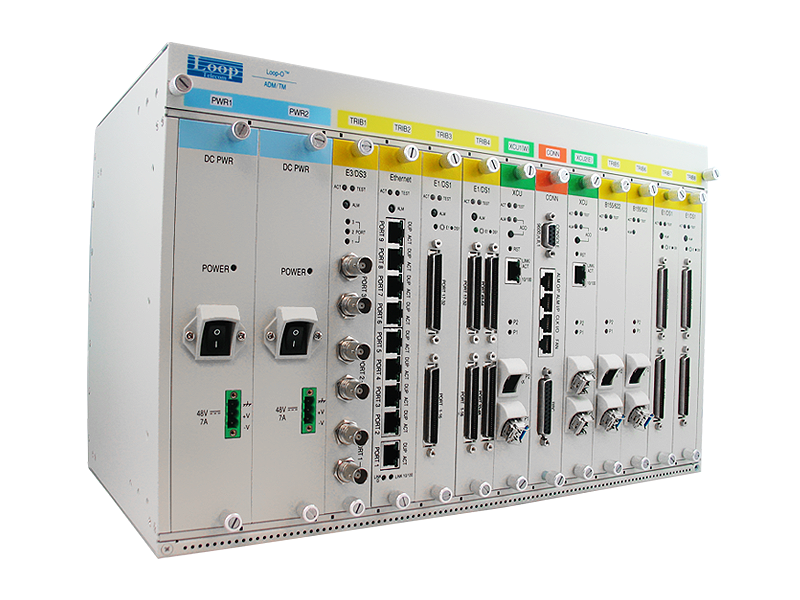

The Loop-O9400R STM-1/4/16 (OC-3/12/48) is a standards-compliant high density SDH SONET ADM/TM multiplexer with a full T1/E1 cross-connect rack system.
The O9400R has full add and drop capability according to the figures below:
For the controller STM-1/4 (OC-3/12) aggregate cross connect module, up to
1 STM-4 tributary
8 STM-1 tributaries
18 E3/T3 tributaries
378 E1/T1 tributaries
48 10/100M Ethernet EoS tributaries
6 GbE EoS tributaries
For the controller STM-1/4/16 (OC-3/12/48) aggregate cross connect module, up to:
1 STM-16 tributaries
4 STM-4 tributaries
6 STM-1 tributaries
24 E3/T3 tributaries
504 E1/T1 tributaries
64 10/100M Ethernet EoS tributaries
8 GbE EoS tributaries
56 FOM tributaries
4 TDMoG tributaries
With up to 4 STM-1/4/16 (OC-3/12/48) aggregate interfaces on cross-connect modules and 16 STM-1 (OC-3) interfaces on tributaries, the Loop-O9400R SDH multiplexer offers the service provider a versatile protection scheme including SNCP (UPSR), and MSP (1+1) protection for network topology.
All interfaces are fully compliant with the relevant ETSI standards and ITU recommendations. The Loop-O9400R SDH multiplexer provides powerful Operation, Administration, Maintenance and Provisioning (OAM&P) functionality, including fault management, performance monitoring, configuration management, and network security management. Through a console port, LAN port, In-band E1, and DCC channel, OAM&P can be achieved both locally and remotely via SNMP or menu-driven interfaces.
The Loop-O9400R SDH multiplexer provides a complete set of operation interfaces that are consistent with the Telecommunication Management Network (TMN) concept (ITU Recommendation M.30, G.784) for SDH/SONET Network Element/Operations System (NE/OS), NE/NE, and NE/Craft communications. Users can easily operate the Loop-O9400R locally or remotely for centralized management.
