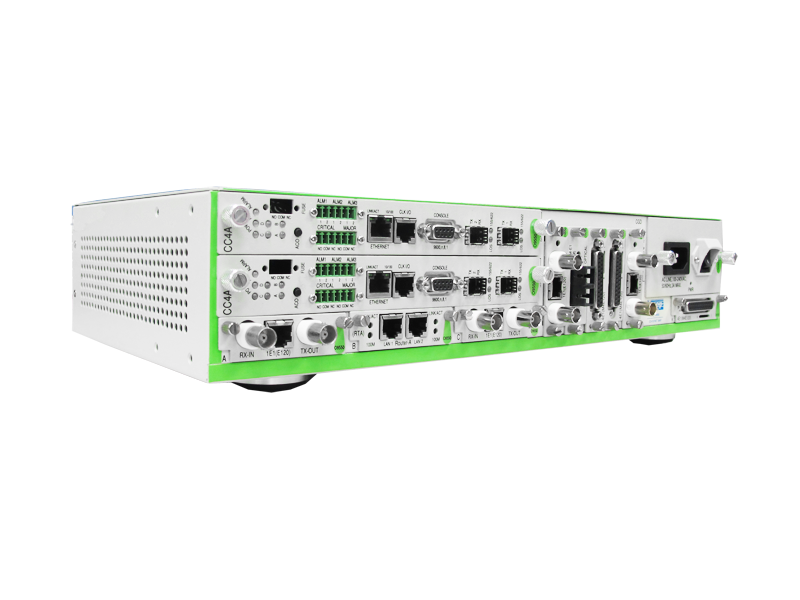

Loop Telecom SDH SONET Integrated Access MUX O9550R D / Loop-O9550-R-CGD-G

Loop Telecom SDH SONET Integrated Access MUX O9550R D / Loop-O9550-R-CGD-G

SKU: 2051 Category:
Brand: Loop

$0.00

Description

The Loop-O9550-D SDH/SONET IMAP (Integrated Multi-Service Access Platform) is an economical STM-1/4 (OC-3/12) access multiplexer. It is designed to combine digital access interfaces, including TDM, IP, and voice interfaces into STM-1/4 (OC-3/12) optical lines for convenient transport and switching.

This unit is a full cross-connect; one or more of the WAN ports can be used as a Drop & Insert function with fractional E1/T1 lines, which can be muxed into a full E1/T1 line.

The O9550-D provides two optical line signals at STM-1 (OC-3) or STM-4 (OC-12) with protection schemes including MSP 1+1 and SNCP protection in both ring and linear network topologies.

Redundancy is available in dual CPU controllers and power supply options, making the O9550-D an excellent fit for critical applications.

The O9550-D supports local control and diagnostics by using a VT-100 terminal connected to the console port. The O9550-D also supports Ethernet, Telnet, SSH and SNMP so that it can also be controlled and diagnosed from remote locations. An in-band management channel with GUI is available. LED indicators for all plug-in cards are also available.

Additional information

Weight 5.00 lbs
Dimensions 12.00 × 12.00 × 12.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

    • 2U height, full front access (ETSI) shelf
    • ADM, TM, and cross-connect
    • Support of DS0 DACS (Digital Access Cross-Connect System) with full cross-connect
    • Dual controller, dual DC power with load sharing or single AC power card support
    • 1 for 1 protection, Y-BOX, E1, T1, FOM
    • PDH ring protection, FOM, Mini QE1
    • Console, Telnet, SNMP, and Inband management support
    • Compatible to a SNMP-based GUI network management system and supported by iNET and Loop iNMS*
    • All the plug-in cards are hot-pluggable

RoHS compliant units are identified by the letter G appearing at the end of ordering code.

Part Number Description Notes

O9550R-D Datasheet
