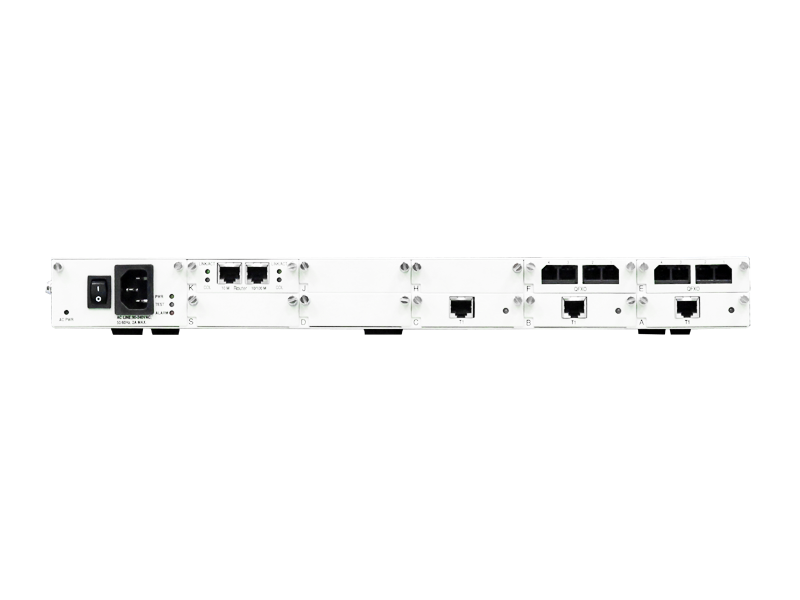

Loop Telecom Multiservice Access multiplexer E1T1 V4200 9 / Loop-V4200-9-G

Loop Telecom Multiservice Access multiplexer E1T1 V4200 9 / Loop-V4200-9-G

SKU: 2029 Category:
Brand: Loop

Price range: $0.00 through $1.00

Description

The Loop-V4200-9 is a versatile 9-port device.Depending on the plug-in cards selected, this unit can be configured

  • as a CSU/DSU with drop and insert and voice capabilities
  • as a 4 E1 to 5 T1 converter or fractions of them
  • as a digital cross-connect system (DACS)
  • as sets of ICSU combined in one box
  • as a channel bank.



As a CSU/DSU, data from the V.35 or X.21 port can occupy any fraction of an E1 or T1 port. As an E1 to T1 converter, A to µ law coding and signaling conversions are correctly handled. For both E1 and T1 ports, continuous error checking,performance polling, and in-service diagnostics are provided. In any of the above combinations,full time slot interchange (TSI) among the ports are possible, making the Loop-V4200-9 a small DACS (digital access cross-connect system).The ports can further be used in pairs as ICSUs (intelligent CSU) at a lower cost and smaller space than individual ICSUs. The Loop-V4200 can also be configured as a channel bank.



The Loop-V4200-9 supports local control and diagnostics by using a 2-line, 40-character LCD display and keypads on the front panel, or by using a VT-100 terminal connected to the console port. The Loop-V4200-9 also supports Ethernet, Telnet, and SNMP so it can be controlled and diagnosed from remote locations. The Loop-V4200-9 supports in-band management, where management data is carried over the same channel as user data.



In addition to the LCD display, 12 multicolor LEDs provide status indications for power, test conditions, and alarms for each of the 9 ports.The internal firmware is stored in flash memory sothat the future software upgrades can be downloaded.

Additional information

Weight 5.00 lbs
Dimensions 12.00 × 12.00 × 12.00 in
Low Speed Module (Select 1 to 9 cards.)

Loop-V4200-T1-G, Loop-V4200-9-G

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

  • T1, E1 interface cards
  • V.35, EIA530, RS232, and X.21 interface cards
  • QFXSA, QFXO, PLAR, and E&M interface cards
  • G.SHDSL interface card
  • T1/ E1 ATM Frame Relay interface cards
  • Router interface card with Subnet management (SNMC)
  • G.703 (co-directional) interface card
  • Terminal Server interface card
  • Fiber Optical interface card
  • OCU-DP interface card

Usable as a CSU/DSU, E1 to T1 converter,multiple CSUs, or a DACS
Full TSI capability among all slots in the main unit Remote diagnostic capabilities
2-line, 40-character LCD display for maintenance,performance monitoring, and administration
Management through Console port, Ethernet port,and SNMP agents
In-band Subnet Management facility for remote management through national networks
LED indicators for power, tests, alarms, and each of 9 ports
Field changeable AC power supply, or dual feed dual DC power supply
Software field upgradeable through download.
Optional GUI NMS with LoopView
Multicasting, broadcasting, and backup

RoHS compliant units are identified by the letter G appearing at the end of ordering code.

Part Number Description Notes
Loop-V4200-9-G Main unit w/ CPU and DCS, w/o power Basic Chassis

V4200-9 Datasheet
