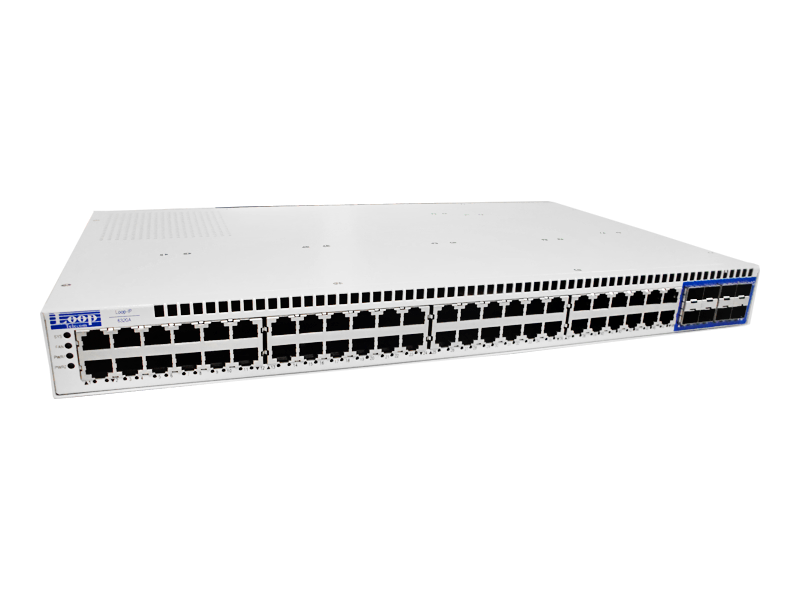

Loop Telecom L2 L3 Industrial 10GE Switch IP6320A

Loop Telecom L2 L3 Industrial 10GE Switch IP6320A

SKU: 2026 Category:

$0.00

Description

The Loop-IP6320A is a high performance Ethernet switch to meet next generation Metro, Data Center and Enterprise Ethernet network requirements designed based on high-end scalable chipset with integration of Layer 2 to Layer 4 packet processing engine, traffic management and fabric interface.

The IP6320A switch provides total 24/48 GbE ports with RJ45 ports. The switch capability of IP6320A supports 120Gbps non-blocking switching for full line speed traffic.

The IP6320A provides advanced L2/L3 features to meet the requirements in Carrier Ethernet and Enterprise network application. IP6320A main features including full IPv4/IPv6 stack, On-chip OAM (802.1ag/CFM/EFM), and Protocol Independent APS (<50ms protect switching).

Additional information

Weight 5.00 lbs
Dimensions 12.00 × 12.00 × 12.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Capacity

  • 8 x 10GbE ports
  • 24 */48 GbE ports
  • 120 Gbps Wire-Speed Bi-dir Switching Capacity

Carrier Ethernet

  • VLAN (IEEE 802.1q)
  • Q-in-Q Vlan stacking (IEEE 802.1ad)
  • Port-based VLAN (IEEE 802.1q)
  • Up to 4K VLAN
  • Port Isolation (Private Vlan)
  • Jumbo frame up to 9600 bytes
  • Ethernet Link OAM – 802.3ah (EFM)
  • Ethernet Service OAM – 802.1ag (CFM)/Y.1731

CoS/QoS

  • Class-to-Priority Mapping per CoS (802.1p)
  • Ingress Policing & Egress Shaping per service
  • CIR / PIR (EIR) 2-rate-3-color traffic engineering
  • 8 Priority Queues
  • Scheduling: Strict Priority, WRR with Hierarchy
  • IEEE 802.3x Flow Control

Layer 3

  • ARP, Ping, Traceroute
  • Static Route
  • RIP v1/v2
  • OSPF
  • IGMP v1/v2/v3
  • PIM-SM

Network Protection

  • ERPS (G.8032) Ethernet Ring Protection with sub-50ms switching
  • ELPS (G.8031) Ethernet Linear Protection
  • STP, RSTP, MSTP
  • LACP, ECMP *
  • VRRP

Management

  • SNMP (v1, v2, v3)
  • Fully manageable via CLI
  • Security
    • SSH, Telnet
  • Configuration upload/download using TFTP
  • RMON Performance management
  • Syslog, NTP, DNS*
  • Port & Vlan Mirror

Power Supply

  • DC48: Hot swappable DC48 module for system power, dual for redundancy
  • AC: Swappable wide-range AC module *
  • DC Mux: Swappable DC Mux module can work with 2 external 12VDC inputs for system power

Miscellaneous

  • Harden environment option (-40 ºC to 70 ºC) *
  • RoHS compliance

RoHS compliant units are identified by the letter G appearing at the end of ordering code.
