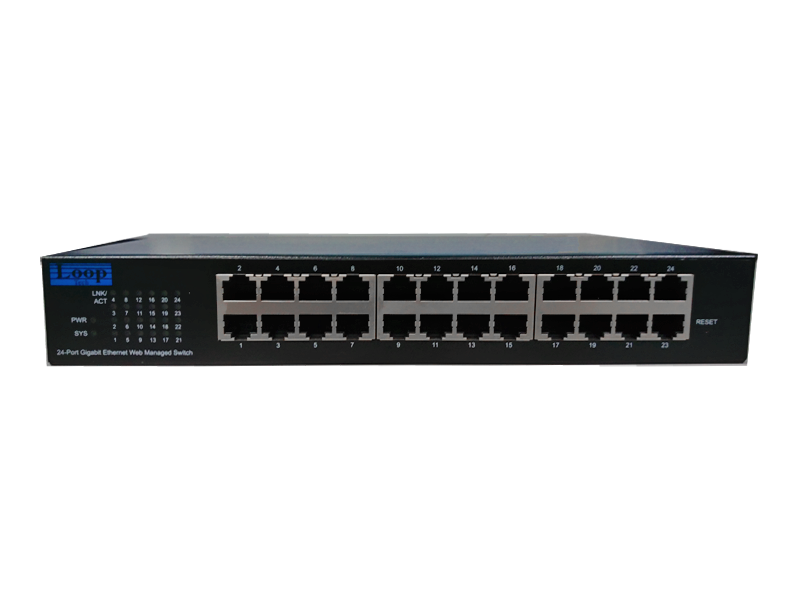

Loop Telecom L2 entreprise 24 GE ports Switch IP6330 / Loop-IP6330-DC-TP1-G

Loop Telecom L2 entreprise 24 GE ports Switch IP6330 / Loop-IP6330-DC-TP1-G

SKU: 2097 Category:

$0.00

Description

Supports non-blocking for full line speed traffic

The IP6330 switch provides total 24 GbE ports with 24 RJ45 ports. The switch capability of IP6330 supports non-blocking for full line speed traffic.

Supports L2 switch management functions

The IP6330 supports lots of L2 switch management functions including. 802.1Q VLAN, Rate Control, Port Configuration, Port Mirroring, Port Statistics, QoS functions, … etc.  The console interfaces of IP6330 supports remote management by SNMP, HTTP, HTTPS, and Telnet interfaces.

Additional information

Weight 5.00 lbs
Dimensions 12.00 × 12.00 × 12.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

  • 1 U height
  • 24 GbE ports
    • 24 ports of RJ45 (10/100/1000Mbps-TX) interfaces, Full/Half duplex auto-negotiation
  • L2 Switch functions:
    • VLAN
    • Jumbo Frame reach up to 9600 bytes
    • Max. 1024 active VLAN with VID (1 to 4094)
    • Port-based VLAN
    • Rate Control
    • QoS
      • 8 priority queues per port
      • Strictly Priority or Weighted Round-Robin (WRR) scheduling
    • Port Rate limiting for ingress/egress traffic
  • Storm control
  • MAC table size 8k
  • LACP for link aggregation (IEEE 802.3ad)
  • IGMP snooping and query
  • Software Upgrade
  • Event Log
  • Management port and interface
    • Embedded SNMP v1, v2c
    • Telnet
    • Web Management (Http)
  • IEEE compliance
    • 802.1p
    • 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
  • RoHS compliant

RoHS compliant units are identified by the letter G appearing at the end of ordering code.

Part Number Description Notes

IP6330 Datasheet
