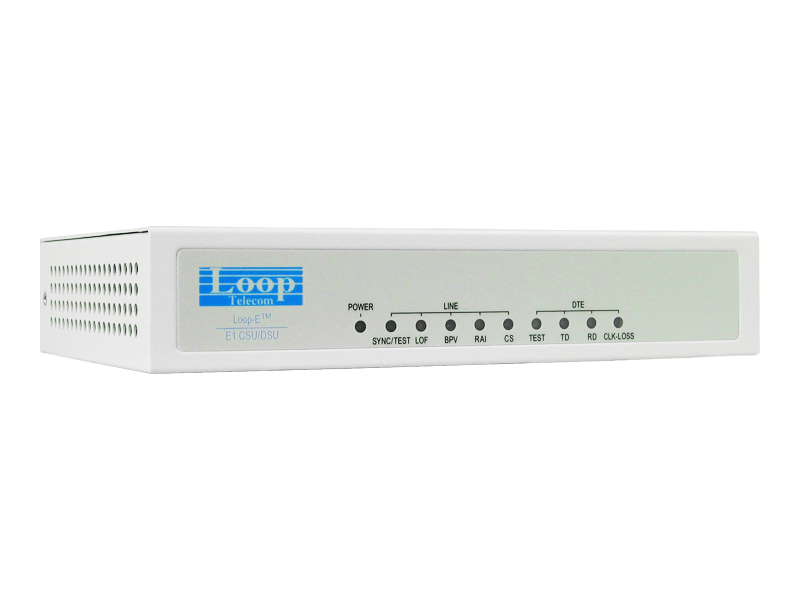

Loop Telecom E1 over DTE converter E1510

Loop Telecom E1 over DTE converter E1510

SKU: 2007 Category:

$0.00

Description

Loop-E1510 Description

The Loop-E1510 E1oDTE (E1 over DTE) provides an economic solution to extend the E1 distance via V.35 data network. The V.35 WAN port operates from 128K bps to 2048Kbps to transport the payload of E1 or fractional E1 (64K to 1984Kbps), and maintains the E1 time slots integrity between local E1 and remote E1.

The E1 port supports framed format with HDB3 coding

The E1 port supports framed format with HDB3 (High Density Bipolar 3) coding. The E1 time slot 0 (TS0) framing will be terminated at local side, only the fractional E1 payload (64K to 1984K bps) will be transported to remote.

The configuration and loopback are provided via the DIP switch

The configuration and loopback are provided via the DIP switch. The LEDs on the front panel provide status indications for both V.35 WAN port and E1 tributary port.

Additional information

Weight 5.00 lbs
Dimensions 12.00 × 12.00 × 12.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

  • 1U height, desktop or rack mount with a tray
  • WAN port
    • Single V.35 (M34, DCE, female)
    • Rates
      • Payload rate: N x 64K bps, N=1 to 31 (64K to 1984K bps)
      • Synchronization rate: 64K bps
      • Bit Rate: (N x 64 K + 64K) bps, N=1 to 31 (128K to 2048K bps)
  • Tributary port
    • Single E1 or fractional E1
  • Power
    • Single AC or DC power
      • AC: 100 to 240 Vac, 50/60 Hz
      • DC: -48 Vdc (-36 to -72 Vdc)*
  • Maintains both E1, fractional E1 and time slot 16 integrity between local E1 and remote E1
  • Management Multicolor LED indicators
  • DIP switch for configuration and loopback

RoHS compliant units are identified by the letter G appearing at the end of ordering code.

Part Number Description Notes
