FiberPlex FP2020E Managed Industrial Gigabit Ethernet Switch with 20-Port including 8-Ports of 10/100/1000 plus 12-Ports of GigE SFP

FiberPlex FP2020E Managed Industrial Gigabit Ethernet Switch with 20-Port including 8-Ports of 10/100/1000 plus 12-Ports of GigE SFP

Category: Tags: , ,
Brand: Patton Electronics

Description

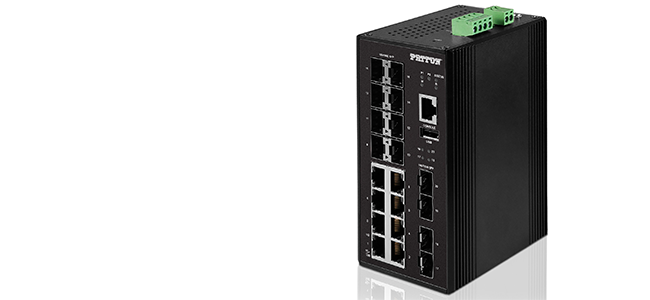

Patton’s FiberPlex FP2020E is a 20-port industrial Gigabit managed Ethernet switch equipped with 8 x 10/100/1000Tx Ethernet ports plus 12 x 100/1000 SFP slots. The unit is a fully manageable layer 3 Ethernet switch. A user-friendly web management console design makes the unit easy to configure and manage.
The unit supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol for ring network redundancy that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The units are designed for high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.
The FP2020E is IP30 rated and DIN-rail or Wall mountable with an extended temperature range of -40°C to 75°C. The unit ships with mounting brackets with screws, a DC power cable and a set of dust covers and an RJ-45 to DB9 serial console cable.
  • Gigabit Ethernet – Supports 8 x 10/100/1000Tx Local Gigabit Ethernet Ports plus.
  • Lots of Flexible SFP Slots – 12 x 100/1000 SFP Slots for Easy and Flexible Copper Port Additions and/or Fiber Backbone Integration.
  • Network Redundancy – Supports STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms).
  • Dual Stack IPv4/6 – Supports IPv4/IPv6, and DHCP Option 66/67/82.
  • Modbus DM – Supports Modbus/TCP Protocol for Device Management and Monitoring.
  • Traffic Filtering – Supports IGMP v1/v2 for Multicast Traffic Filtering
  • Deterministic QoS Support – QoS (IEEE 802.1p/1Q), CoS/ToS to Increase Determinism.
  • Better Planning & Security – IEEE802.1Q VLAN for Easy Network Planning and Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL.
  • Rugged Design – Extended Operating Temperature: -40°~75°C, IP30 Protection.
  • Flexible Mounting – Din Rail or Wall Mountable.
Layer 2 Switching Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2.
Layer 3 DHCP option 82, static routes.
QoS 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode.
Power Saving ActiPHY, PerfectReach, IEEE 802.3az EEE power management.
Network Redundancy STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms).
Configuration & Management Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3.
System / Diagnostics Dual Image Protection, PING, PING6.
Switching Architecture Back-Plane (Switching Fabric): 40.0Gbps.
Protocols IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger.
Priority Queues 8
Processing Type Store and Forward.
Flow Control IEEE 802.3x for full duplex mode, back pressure for half duplex mode.
Transfer Rate 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port and, 1,488,000pps for Gigabit Ethernet Port.
Memory Buffer 4 Mbits.
Jumbo Frame 9.6 Kbytes.
MAC Table Size 8 K.
VLAN Groups Up to 4095
IGMP Group Up to 1024.
Ethernet Port Eight (8) x 10/100/1000BaseTx. Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection.
SFP Port Twelve (12) x 100/1000 SFP Slots.
Serial Console One (1) x RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1. Configuration backup One (1) x USB 2.0
LED Indicators System: Power 1, Power 2, Status, Master, and Ring. Ethernet: Speed/Link/Active. SFP: Link/Active.
Network Cables 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m). 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m). 1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m).
Housing Metal, IP30 rated.
Dimensions 71.5 x 142 x 99 mm (W x H x D).
Mounting DIN-Rail and Wall mounting.
Power Input Voltage 12~48VDC Redundant Input.
Power Connection 1 removable 4-contact terminal block and 1 removable 2-contact terminal block.
Relay Contact 24VDC, 1A resistive.
Overload Current Protection Present (Slow-Blown Fuse).
Reverse Polarity Protection Present.
System Power Consumption 19W.
Operating Temperature -40¢XC to 75¢XC. Storage Temperature -40¢XC to 85¢XC.
Ambient Relative Humidity 5% to 95%, (non-condensing).
Compliances EMI, FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A. EMS CE, EN55035/EN61000-6-2, IEC61000-4-2,3,4,5,6,8. Free Fall, IEC60068-2-32. Shock, IEC60068-2-27. Vibration, IEC60068-2-6. Green, RoHS Compliant.
Certifications FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2.
Weight Unit Weight 3.4 lbs. Shipping Weight 4.18 lbs.



# Model # Description Availability
1 FP2020E/12SFP/DC Managed Industrial Gigabit Ethernet Switch 8-Ports of 10/100/1000 plus 12-Ports of GigE SFP; IP30 Packaging (-40-75C); 12-48VDC input. Pre-Order Available
