FiberPlex FP100EM Ultra-Miniature Industrial 10/100 Media Converter

FiberPlex FP100EM Ultra-Miniature Industrial 10/100 Media Converter

Categories: , , Tags: , , , , , , ,
Brand: Artel

Description

Patton’s FP100EM converts singlemode or multimode fiber to a copper Ethernet signal. The stable bandwidth and noise immunity is ideal for low bandwidth applications that include connectivity POS kiosks, BACs, PLCs and many other remote networking needs.

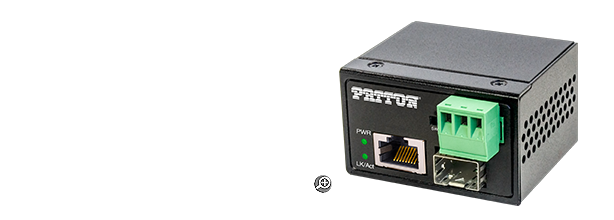

FiberPlex™ FP100EM is really this small!
Because Ethernet over Cat 5e/6 cables is limited to only 328 feet (100 meters), using fiber as a backhaul allows for a massive increase in distances. SFP options for multimode can reach up to 1.24 miles (2 km) and singlemode options can range as far as 74 miles (120 km). In addition to the reach, you get fiber’s superior immunity to noise and, harmful transients (surges).

The FP100EM is housed in an IP30-rated, DIN-rail or wall-mount enabled enclosure, and has a wide operating temperature of -40 to 167°F (-40 to 75°C). Its rugged design and wide temperature range makes it an ideal media converter for industrial or harsh environments. Its small size even allows you to put it directly into the enclosures of your primary devices.

Applications

FiberPlex™ FP100EM application diagram

  • Extended Operating Temperature – -40 to 167°F (-40 to 75°C) ambient temperature range.
  • Flexible Mounting Options – Panel or wall mount, DIN rail or desktop.
  • Rugged – Meets tough EN60068 standards for Free Fall, Shock, and Vibration.
  • Link Fault Pass-Through (LFP) – If the copper signal is lost or disconnected, the fiber signal will turn off. If the fiber signal is lost or disconnected, the copper port will turn off.
  • Plug and Play – No configuration required.
  • TAA Compliant – Top-notch quality and reliability with local support.
Ethernet Interfaces
  • 1x100Mbps SFP Port
  • 1xRJ-45 10/100BaseT(X)
  • Auto MDI-X / MDI crossover
  • Auto-Negotiation, 10/100 Mbps
  • Auto-Negotiation, Full or Half Duplex
Networking
  • IEE 802.3x Flow Control and Back Pressure
  • Converter Mode: Port speeds are the same
  • Switch Mode/Store and Forward: Port speeds are not the same
  • Back-plane (switching fabric): 4 Gbps
  • Jumbo Frame: 16Kb
  • MAC Address Table Size: 1K
  • Packet Buffer Size: 512 Kb
IEEE Standards
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
Management
  • Plug and Play operation
  • LEDs (Power, Copper TX Link & Activity, Fiber (SFP) Link & Activity)
  • DIP Switch Functions (Link Fault Pass Through On or Off, SFP Speed 100 Mbps or 1 Gbps)
Power Input
  • 3-pin terminal block 48–56 VDC input
  • Relay switch for alarm
Power Input Connector
  • Removable 3-pin terminal block
  • Wire range: 0.34 to 2.5 mm^2
  • Solid wire (AWG): 12–24/14–22
  • Stranded wire (AWG): 12–24/14–22
  • Torque: 5lb-In/0.5Nm/0.56Nm
  • Wire Strip length: 7–8 mm
Power Consumption 1.92 watts @ 48 VDC full load
Regulatory Approvals
  • Safety: LVD (EN62368-1)
  • EMC: CE, FCC, EN55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS
    • IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
    • IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
    • IEC 61000-4-5 Surge: Power: 2KV; Signal: 2KV
  • Free Fall: EN60068-2-32
  • Shock: EN60068-2-27
  • Vibration : EN60068-2-6
Environmental Ambient Temperature

  • Operating: -40 to -167°F (-40 to 75°C)
  • Storage: -40 to -185°F (-40 to 85°C)

Relative Humidity
5 to 95% non-condensing

Protection Class
IP30
Physical
  • 2.32L x 1.42W x 1.93D in. (59L x 36W x 49D mm)
  • Unit Weight: 3.2 oz (91g)
  • Shipping Weight: 8 oz (227g)

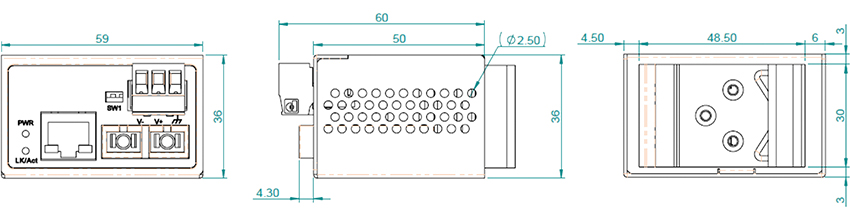

FP100EM dimensions
