DrayTek VigorAP 960c - 2x2 Dual Band WiFi 6 Ceiling AP

DrayTek VigorAP 960c – 2×2 Dual Band WiFi 6 Ceiling AP

SKU: 4528 Category:
Brand: Draytek

$225.00

Description

Lightweight AP with Pro performance

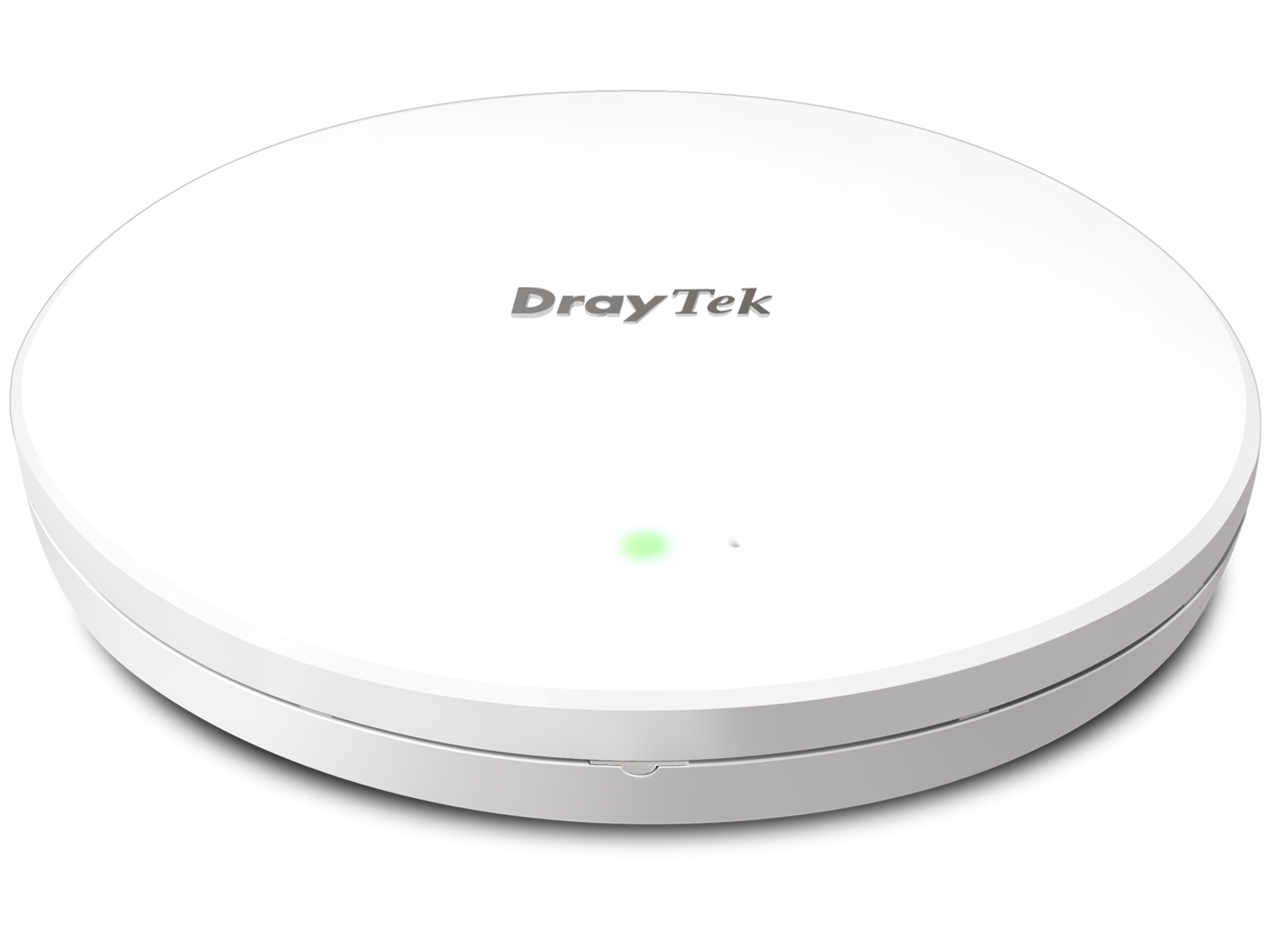

VigorAP 960C is an 11ax ceiling-mount wireless access point. With wire-liked link rate up to 1.2 Gbps in 5GHz band and up to 600Mbps in 2.4GHz, it’s suitable for high density environments. It can be cloud-managed by VigorACS, and also act as the mesh Root AP to manage up to 7 mesh node APs in LAN.

  • Dual-Band: Concurrent 5GHz and 2.4GHz

  • AX1800: Delivers link rate up to 1.8 Gbps

  • 256 Users: Acitve at maximum, 128 per radio

  • 1x LAN Port: 1x 10/100/1000M Base-T RJ-45



Interface

Interface of VigorAP 960C

1. Factory Reset Button

2. Security Lock

3. LAN : 10/100/1000M Base-T RJ-45 PoE-PD Support

4: DC Power Input

Additional information

Weight 5.00 lbs
Dimensions 18.00 × 12.00 × 10.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Key Features

wireless mesh

Mesh (Wireless model only)

Easily link to other VigorAP to expand the wireless network. Learn more

power over ethernet

PoE Power Supply

Simplify the infrastructure by getting data and power through a single cable.

SSID

Multiple SSID

Mapping Wi-Fi clients to different VLANs and have a different set of security standards Learn how

airtime fairness

Airtime Fairness

Equalize the transmission time of each client so the legacy devices won't slow everyone down. Learn more

band steering

Band Steering

Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more

wi-fi roaming

Assisted Wi-Fi Roaming

Solve the sticky client problem and improve Wi-Fi roaming experience. Learn more

Schdule

Wi-Fi Scheduling

Schedule Wi-Fi On and Off to control wireless access and save energy.

RADIUS authentication

Local RADIUS Server

User profile database for local and external 802.1x authentication.

captive portal

Hotspot Web Portal

Market your business and communicate with the guests while offering hospitality WLAN. Learn more

wireless management

Central AP Management

Manage, maintain, and monitor VigorAP 960C from the DrayTek routers. Learn more

Interface
LAN Port 1x 10/100/1000M Base-T, RJ-45
PoE 802.3at (in)
Antenna 2x Internal PiFA Dual-Band
Gain: 3 dBi for 5GHz, 1.3 dBi for 2.4GHz
Button 1x Factory Reset Button
DC Power Jack 1
Security Lock 1
WLAN
WiFi 6
2.4GHz Standard IEEE 802.11b/g/n/ax 2×2 MIMO, up to 1024-QAM
5GHz Standard IEEE 802.11a/n/ac Wave 2/ax 2×2 MU-MIMO, up to 1024-QAM
2.4GHz Link Rate Up to 600 Mbps
5GHz Link Rate Up to 1200 Mbps
Max. Number of Concurrent Active Clients 256 (128 per radio band)
Operating Mode AP, Mesh Root, Mesh Node, Range Extender
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r
AirTime Fairness
Band Steering
Auto Channel Selection
OFDMA
Max. Number of SSID 8 (4 per radio band)
WDS
Client Numer Limit Per radio, Per SSID
Connection Time Control
WMM
IGMP Snooping
Security
Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication Personal, Enterprise
WPS PIN, PBC
Hidden SSIDs
MAC Address Filter Up to 256 entries
Wireless Client Isolation
Mobile Device Management
Application
Built-in RADIUS Server
RADIUS Proxy PEAP, EAP-TLS
Hotspot Web Portal
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics, Interference Monitor
Configuration Backup and Restore
Syslog
Mail Alert
SNMP v1, v2c, v3
Managed by VigorConnect
Managed by VigorACS
Central AP Management 30 VigorAP
Physical
Environment Indoor
Mounting Ceiling Mount, Wall Mount, Desktop
Power Input 12VDC, 1.0A
PoE Power Input 52V, 0.35A
Max. Power Consumption 11 watts
Dimension 178 mm x 178 mm x 35 mm
Weight 380 g
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 10 to 90% non-condensing
Certificate CE FCC NCC

Ordering Information



Model # Description Availability
VigorAP 960c  2×2 Dual Band WiFi 6 Ceiling AP   General Availability
