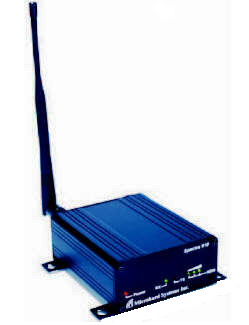

DATA CONNECT SWM910A 115KBPS 900MHZ FREQUENCY HOPPING SERIAL WIRELESS MODEM

DATA CONNECT SWM910A 115KBPS 900MHZ FREQUENCY HOPPING SERIAL WIRELESS MODEM

SKU: 877 Category:
Brand: Data Connect

$521.25

Description

Industry leader for extremely robust and reliable license-free transfer, the Data Connect SWM910A provides up to 115kbps serial communications over distances up to 60 mile (100km). Flexible configuration options allow for various network technologies.

Data Connects Proprietary radio technology excels in the most demanding RF and physical environments. The Data Connect SWM910A is easily configured through a convenient AT Command Set interface. Users have the ability to deploy a wide range of network styles including repeaters and multipoint. The master site can diagnose the performance and modify the operation parameters of any remote slave unit.

The following are application for the SWM910A.

  • SCADA
  • Telemetry
  • Vehicle Detail Tracking
  • Utilities / Metering
  • Display / Signs
  • Traffic Control & many more

The Data Connect SWM910A provides a very high interference and noise rejection allowing reliable communication in high power cellular and paging environments. The repeater units can also act as a slave with no restrictions on the number of repeaters in the system. Internal CRC and user-selectable forward error correction ensures reliable transmission.

Additional information

Weight 5.00 lbs
Dimensions 12.00 × 12.00 × 12.00 in

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Features

  • Up to 115kbps continuous throughput
  • Extremely Robust Long Range Frequency-Hopping Data Radio
  • Transparent Communication
  • Low Latency adding little overhead
  • Supports Point-to-Point Point-to-Multipoint Repeater TDMA
  • Supports Mode through Units Configured as a Repeater
  • Adjustable Transmit Power (100mW – 1W)

Specifications

Frequency:
902-928MHz

Spread Method:
Frequency Hopping

Output Power:
1W User Configurable

Sensitivity:
-108dBm

Data Rate:
1200 to 115.2kbps Uncompressed

Range:
60+ miles (100+km) Dependent on the Link Rate & Line of Sight

Rejection:
70dB Out of Band, 60dB in Band, 50dB Adjacent Channel

Operating Modes:
Point-to-Point, Point-to-Multipoint, Store & Repeater, TDMA, Multimaster

Hopping Patterns:
64 User Selectable

Diagnostic:
Remote Control, Remote Statistics, Remote Diagnostics

Error Detection:
32bits of CRC with Optional REC

Data Interface:
Asynchronous RS232, Optional RS422/RS485

RS-232 Signals:
GRD, TXD, RXD, CTS, RTS, DTR, DSR, DCD

Input Voltage:
10-30VDC

Power Consumption:
450mA Max at 12V & 1W TX Power
250mA Max at 12V & 1W TX Power

LED Indicators:
Power, TX, RX, RSSI

Connectors:
Antenna:           RP-TNC Female Bulkhead
Data:                RS232 (DB-9F) Locking Screw Connector

Environmental:
Temperature:     -40°C to +85°C
Humidity:          5-95% Non-condensing
Weight:             420g
Dimensions:      111mm L x 95.3mm W x 44.5mm H
Enclosure:        Extruded Aluminum
Mount:              Panel Mount
Approvals:        FCC Part 15.247
                        IC RSS210
