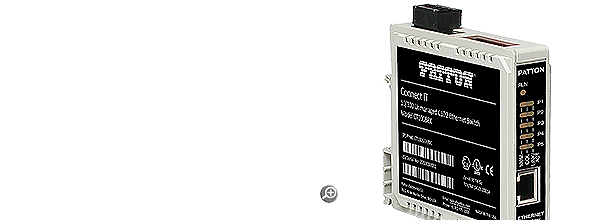

Connect-IT CT1005EX Unmanaged 5-port 10/100 Mbps Class 1, Division 2 Ethernet Switch, Extended Temperature 13°-158°F (-25° to 70°C)

Connect-IT CT1005EX Unmanaged 5-port 10/100 Mbps Class 1, Division 2 Ethernet Switch, Extended Temperature 13°-158°F (-25° to 70°C)

Category: Tags: , , , ,
Brand: Connect-IT

$1,211.10

Description

The Connect-IT CT1005EX is an Un-Managed 5-port 10/100 C1D2 Ethernet Switch designed for use in industrial applications. Rugged construction ensures reliable operation under demanding conditions and in the harshest locations. This is a perfect switch for use in power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

The CT1005EX circuit board is made of military grade FR-4 epoxy glass and is housed in a sturdy UL94 V0 rated fiber-reinforced polycarbonate PC-F plastic DIN-rail enclosure.

CT1005EX is fully protected from harmful transients and noise including RFI, EMI, ESD, EFT even surges. Power and network circuits are completely isolated from each other.



Internal intelligence enables simple plug and play operation for fast and easy network installation. Power the switch, plug in the Ethernet connections and let the CT1005EX auto-negotiate data rate, flow control, and even the crossover signal compatibility.

C1D2

Class 1 Div 2 Ethernet Switch (Class 1 Division 2 Ethernet Switch). CT-1005EX Unmanaged 5-Port Industrial Ethernet Switch Line Drawing

Applications
Class 1 Div 2 Ethernet Switch, Class 1 Division 2 Ethernet Switch | CT-1005EX Unmanaged 5-Port Industrial Ethernet Switch | C1D2 Ethernet Switch

  • Extended Operating Temperature – -13 to 158°F (-25 to 70°C) ambient temperature range
  • Redundant power input – Wide-Range DC-power with redundant power connection for optional standby backup power
  • Hardened for harsh environments – Protection from RFI, EMI, ESD, EFT, and surges
  • Fully isolated – For safety and increased noise immunity with power-to-network and port-to-port isolation
  • Designed and Manufactured in the USA – Top notch quality and reliability with local support

Specifications

Ethernet Interfaces
  • 5 x 10/100 (RJ45)
  • Auto MDI-X/MDI crossover
  • Auto-negotiation, 10 or 100 Mbps
  • Auto-negotiation, full or half duplex
  • IEEE 802.3, 802.3u, 802.3x
Ethernet Switching
  • Automatic aging and learning-stores up to 1K MAC addresses
  • Auto address migration
  • Switch architecture: store and forward
Environmental Ambient Temperature:

  • Operating: -13 to 158°F (-25 to 70°C)
  • Storage: -40 to -185°F (-40 to 85°C)

Relative Humidity: 5 to 95% non-condensing

Isolation: Power and network circuits are isolated from each other for common-mode voltages up to 250 VAC, or 354 VDC off DC power ground, on a continuous basis (will withstand 1,500 VAC dielectric strength test for one minute without breakdown).
Power Non-polarized 15–36 VDC SELV (2.6 watts)
Regulatory Approvals Electromagnetic Compatibility (EMC):

  • EN50082-1
  • ESD: EN61000-4-2
  • RFI: EN61000-4-3 & EN50204
  • EFT: EN61000-4-4
  • Surge: EN61000-4-5
  • CRFI: EN61000-4-6

Emissions: EN50081-1

Radiated Emissions: EN55022 Class A

UL, cUL, Class 1; Div 2; Groups A, B, C, D

CE/ATEX
Physical Dimensions: 1.05 L x 4.35 W x 4.22 H in. (2.67 L x 11.0 W x 10.7 H cm)

Unit Weight: 2.5 lbs. (1.13 kg)

Shipping Weight: 3.0 lbs (1.36 kg)

# Model # Description Availability
1 CT1005EX/DC Unmanaged C1D2 Industrial 10/100 Ethernet Switch; 5 x 10/100 (RJ45); – 25 -70C, 12-36VDC input Pre-Order Available
