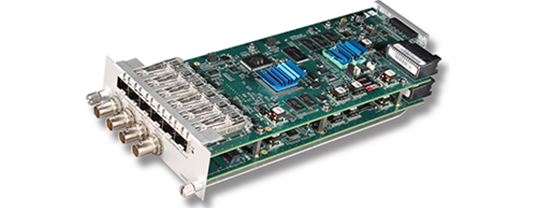

The SMART Media Delivery Platform™ is an award-winning Software Defined four-channel auto-sense 3G/HD/SD-SDI-over-IP multi-function gateway with an integrated nonblocking Layer 2/3 switch.
The SMART Platform has been designed to attach seamlessly to the IP network without the need for external network elements. Functionality of the platform may be added or upgraded via software download.
The flexibility in function capabilities, along with greater port density, drastically reduces power consumption, reduces size and cost, and allows for a seamless transition as the end user’s network evolves.
  • Video-Over-IP Transport of 3G/HD/SD-SDI, ASI uncompressed or JPEG2000 compressed
  • Single double high module can be configured as Video to IP Transmitter or IP to Video Receiver
  • Fully transparent carriage of 3G/HD/SD-SDI, and ASI including audio and ancillary data
  • Four GigE data ports bridged to 10G interface
  • VLAN tagging capabilities
Artel Video Systems Receives IABM Design & Innovation Awards 2017 in the Content and Communication Infrastructure category for the SMART Media Delivery Platform.
Fits both the DigiLink DL4360x/DL4000 and InfinityLink IL6000 Chassis.



InfinityLink IL6000 Chassis System

Applications


Automatic rate selection.

  • 2.970 Gb/s 3G-SDI (ST 424:2012)
  • 1.485 Gb/s HD-SDI (ST 292:2011)
  • 270 Mb/s SD-SDI (ST 259:2008, ITU 656)
  • DVB-ASI to more than 200 Mb/s

SMPTE standards-based encapsulation and forward error correction for uncompressed video.

  • ST 2022-7:2013 Seamless Protection Switching
  • ST 2022-6:2012 IP Encapsulation of high bit rate media (HBRMT) (SDI)
  • ST 2022-5:2013 FEC recovers lost, damaged, or delayed packets of HBRMT
  • ST 2022-2:2007 IP Encapsulation of MPEG2 TS (ASI)
  • ST 2022-1:2007 FEC recovers lost, damaged or delayed packets

TR-01 based JPEG2000 for compressed video over IP.

Flexible user configurable FEC and buffering settings.
  • Selectable transmitter row and column Forward Error Correction settings
  • Selectable receiver buffering
  • Designed to withstand burst outages in excess of 3 ms
Supports unicast or multicast streaming.
Externally accessible SFP+ transceiver for 10G trunk interfaces.
  • WDM (1310 nm, 1550 nm)
  • CWDM ITU G.694.2 (Channels 27-61)
  • DWDM ITU G.694.1 (Channels 21-60)
Multiple Chassis Options.
  • Fits the DigiLink DL4360x and DL4000 Chassis
  • Fits the InfinityLink IL6000 Chassis
Externally accessible SFP transceiver for 1G user interfaces.
  • Optical budget to 33dB
  • WDM (1310nm, 1550nm)
  • CWDM ITU G.694.2 (Channels 27-61)
  • DWDM ITU G.694.1 (Channels 21-60)
Front panel HD-BNC monitor Configure, monitor, and manage via on-board DigiLink Manager or SNMPv2 * Future Complete the quote cart for additional information.

Environmental

Operating Temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity
10 to 95% (non-condensing)
Power dissipation
38 Watts Note:  Refer to the SMART Media Delivery Platform  Installation and Operations Manual for DL4000 chassis power supply limitations.

Physical

Dimensions
1.6” x 5” x 10.8” 2 slots in chassis
Weight
<2 pounds (1kg)

Video Interface

Signal Formats (auto sensing)
2.970 Gb/s 3G-SDI (ST 424:2012) 1.485 Gb/s HD-SDI (ST 292:2011) 270 Mb/s SD-SDI (ST 259:2008, ITU 656) DVB-ASI to more than 200 Mb/s
Connectors
4 Rear BNC 75 Ohm (input or output)
Return Loss
>15 dB, 5-1485 MHz
Cable Equalization for Belden 694A type cable
0-80 meters 2.97 Gb/s), 0 to 100 meters (1.485 Gb/s), 0 to 250 meters (270 Mb/s) 0 to 250 meters (270 Mb/s)
Chassis Compatibility
DigiLink:  DL4360x, DL4000 InfinityLink:  IL6000 chassis

10G Network Interface (Trunk)

Type
Ethernet SFP+ (2)
Optical Connectors
LC
Format
10 Gig-E

Gig E User Data Interface

Data Rates
10/100/1000 Ethernet
Internal
1 to other modules in chassis
External SFP
(4) Optical or RJ-45

Regulatory Conformance

Compliance
CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22

# Model # Description Availability
1 398-008454-00 DigiLink, Model SMART–ST2022, SMART Hardware Module with ST 2022 Software Pre-Order Available
2 398-008454-01 DigiLink, Model SMART-J2K, SMART Hardware Module with J2K Software Pre-Order Available
Accessories
3 395-008454-00 DigiLink, Model SW-ST2022, SMART – SW-ST2022 4-CH Software License Key Pre-Order Available
4 395-008454-01 DigiLink, Model SW-J2K, SMART – SW-J2K 4-CH Software License Key Pre-Order Available
