Artel Quarra PTP-10G4POE Precision Timing Protocol (PTP) 10 Gbps Ethernet Switch with 24 x 10/100/1000 POE+ and 4x 1G/10G Uplink Ports

Artel Quarra PTP-10G4POE Precision Timing Protocol (PTP) 10 Gbps Ethernet Switch with 24 x 10/100/1000 POE+ and 4x 1G/10G Uplink Ports

SKU: N/A Category: Tags: , , , ,
Brand: Artel

Price range: $2,439.80 through $2,896.30

Description

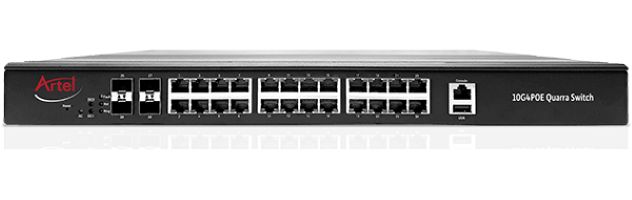

Artel’s PTP-10G4POE PTP Ethernet Switch delivers POE+ power on twenty-four (24) 10/100/1000 local Ethernet Ports, and it has four (4) 10G Uplink SFP Ports.



These Carrier Class Switches are designed for highly accurate nanosecond timing and control.  IEEE 1588 PTPv2 with all clocking modes, plus NTP v4 means Quarra switches are ready for Media Broadcast, ProAV, Defense, and Industrial application and is ruggedized for heavy use.



The device supports all possible clocking modes including Ordinary & Boundary Clocks, Peer to Peer Transparent Clock, End to End Transparent Clock with Hardware Timestamping (The switch adds timestamps to PTP event packets as they enter and exit the Switch).  Super accurate clock synchronization means the unit is well suited for 5G networks, multi-media/video and industrial applications (including support for the Modbus TCP protocol).  Support for  QoS CoS/DSCP increases determinism.



The PTP-10G4POE has been tested as fully interoperable with SMPTE 2110, SDVoE (Tx/Rx), AES67 and Dante.  Grandmaster integration testing has been performed with all standard Grandmaster Clocks such as Meinberg and Sonifex.



Support for NTP v4 (Network Time Protocol), including sNTP, improves time-resolution and frequency stability, works well with IPv6 and enhances security with key cryptography to protect against malicious time synchronization hacks.



POE Monitoring, Scheduling, PD Alive Check, and PoE Priority are included and LEDS indicate PoE Output Power.  The device also Supports PoE PD Alive Check Function for PoE Device Power Recycle.



The unit boasts powerful switching features including a 128Gbps Switch Fabric, 8 Priority Queues, 9216bytes Jumbo Frame, 16K MAC Table Size and 12Mbits Packet Buffer.  Traffic Management is done with IEEE 802.3x flow control to manage traffic to prevent network congestion and data loss.  And the unit supports IGMP Snooping v1/v2/v3, up to 512 groups and DHCP Relay Option 82 for policies IP address assignment and RSTP, MSTP, ERPS, LACP for Network Redundancy and Ring Protection.



Built for harsh environments meeting Ingress Protection IP-30 with operating temperatures of -40°C ~ 75°C, the unit is ready for the road and suitable for heavy industrial uses.



Configuration and Management can be performed with an intuitive Web GUI, can be configured locally or remotely using a CLI (command line interface) and offers SNMP v1/v2c/v3 for network management.

Applications

The Quarra PTP-10G4POE is used as a Precision Timing Protocol Leaf Switch, connected locally using 24x 1G POE Ethernet to IP media broadcast gear and aggregating to Spine Switches using 4x 10 Gig SFP Ethernet (Fiber).

The Quarra PTP-10GG8POE is used as either a PTP Leaf or Spine switch supporting 24x 100/1000/2.5G/5G/10GT POE local ethernet ports and aggregating to Spine or Core Switches using 8x 10 Gig SFP Ethernet (Fiber).

Additional information

Model

10G4POE/RADC, 10G4POE/RDC, 10G4POE/RUI, 10G4POE/UI
  • 24x GigE with POE+ – Comes with 24x 10/100/1000 Copper (RJ-45) POE (IEEE 802.3at PoE+) Local Ethernet Ports.
  • PoE Monitoring – Supports POE Monitoring, Scheduling, PD Alive Check, and PoE Priority. LEDS indicate PoE Output Power. Supports PoE PD Alive Check Function for PoE Device Power Recycle.
  • 4x 10Gig SFPs Uplinks – Also includes 4x 1/10 Gigabit Ethernet SFP+ Slots for use as Uplink Ports.
  • IEEE 1588 Clock Synchronization – The industry’s most Accurate IEEE 1588 Timing & Synchronization for nanosecond accurate timing.
  • All Clocking Modes – Including Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock.
  • Hardware Timestamping – Transparent Clock is Hardware Timestamped for super accurate synchronization in 5G networks and multi-media/video applications. The switch adds timestamps to PTP event packets as they enter and exit the Switch.
  • Audio & Video – Tested and fully interoperable with SMPTE 2110, SDVoE (Tx/Rx), AES67 and Dante.
  • Grandmaster Integration – Interoperates with all standard Grandmaster Clocks such as Meinberg and Sonifex.
  • NTP v4 Support – Support Network Time Protocol version 4 including sNTP. NTP improves time resolution and frequency stability, works with IPv6 and enhances security with key cryptography to protect against malicious time synchronization hacks.
  • Multiple Use-Cases – Designed for ProAV, Media Broadcast over IP, 3G/4G/5G, and Industrial Automation (including support for the Modbus TCP & ProfNet protocols).
  • Determinism – Supports QoS CoS/DSCP to increase determinism.
  • Powerful Switch Characteristics – Layer 3 Switching, 128Gbps Switch Fabric, 8 Priority Queues, 9216bytes Jumbo Frame, 16K MAC Table Size and 12Mbits Packet Buffer.
  • Traffic Management – Supports IEEE 802.3x flow control to manage traffic to prevent network congestion and data loss.
  • Redundancy & Ring Protection – Offers RSTP, MSTP, ERPS, LACP for Network Redundancy and Ring Protection.
  • IGMP & DHCP – Supports IGMP Snooping v1/v2/v3, up to 512 groups. DHCP Relay Option 82 for policies IP address assignment.
  • Rugged Industrial Use – Built for harsh environments with operating temperatures of -40°C ~ 75°C and meeting IP-30 standards.
  • Configuration and Management – Easily managed from an intuitive Web GUI. Can be configured locally or remotely using a CLI (command line interface). No training is required; units can be quickly and easily configured. Offers SNMP v1/v2c/v3 for network management.



1G Ethernet Port 24x 10/100/1000T(x) with PoE+ (RJ45), auto negotiation speed duplex mode, auto MDI/MDI-X
PoE Pin Out V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A
Ethernet Fiber Port 4x 1/10 Gigabit Ethernet SFP+ Slot
LED Indicators
  • Per unit: PWR1, PWR2(AC2/DC2), Fault, Ring Master, Ring State
  • Ports: Link/Active with highest speed(Green), low speed(Amber)
  • PoE: Output Power
Alarm Contact 1x relay output with current carrying capacity of 1A @ 24 VDC
Digital Inputs
  • 1x isolated input from the electronics
  • +13 to +30V for state “1”
  • -30 to +3V for state “0”
  • Max. input current: 8mA
Reset Button Multiple functions reset button
Serial Console 1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1
External Storage 1x USB 2.0 storage for firmware update, configuration backup, restore, boot and syslog
IEEE Standards
  • IEEE 802.3 10BaseT
  • IEEE 802.3u 100BaseTX
  • IEEE 802.3ab 1000BaseT
  • IEEE 802.3ae 10GBase over Fiber
  • IEEE 802.3x Flow Control
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at PoE+
  • IEEE 802.3az Energy-Efficient Ethernet
  • IEEE 802.3ad/802.1AX LACP
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid STP
  • IEEE 802.1s Multiple STP
  • ITU-T G.8032 / Y.1344 ERPS
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1ad Stacked VLANs
  • IEEE 802.1p Class of Service
  • IEEE 802.1X Network Authentication
  • IEEE 802.1AB LLDP
  • IEEE 1588 PTP
Processing Type Store and Forward Switch Properties
Switch Fabric 128Gbps
Priority Queues 8 Queues
Jumbo Frame 9216 bytes
MAC Table Size 16K
Packet Buffer 12Mbits
VLAN Table Size 4094
IGMP Group 512
ACL Group 512
VLAN IP Entries 64
Routing Entries IPv4 512, IPv6 256, host, 64/64 LPM
Network Redundancy RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP
Security 802.1X, RADIUS, TACACS+, SSL, SSH
Management IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP
Diagnostics RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP, DDM
Configuration DHCP Server/Client, Relay Option 82, TFTP, USB
Filter 802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning
Time Sync. NTP, IEEE1588v2 OC (Software Timestamp), BC (Software Timestamp), TC (Hardware Timestamp)
QoS CoS, DSCP, WRR/SPQ Queuing, Storm Protection
PoE Powering Status, PoE Monitoring, Scheduling, PD Alive Check, PoE Priority
Industrial Profiles Ethernet/IP, Modbus TCP, Profinet
L3 Switching Static Routing, RIP v1/v2, RIPng, OSPF v2, OSPF v3, VRRP v2
Operation Voltage 100~240VAC, 48~57VDC, redundant dual inputs, >50VDC for PoE+ output recommended
Power Connection AC socket, DC 4-pin terminal block
Power Consumption 0.45A@48VDC; 0.33A@110VAC without PDs’ consumption
PoE Power Max. 348W@AC with derating (50°C to Budget 70°C, 2.5%/°C) or 720W@DC, for total PD consumption, Max. 30 W per PoE port
Protection Overload Current Protected, Reverse Polarity Protected
Enclosure Aluminum / Steel metal
Protection Class IP30
Dimensions 440x44x331 mm (WxHxD)
Weight 6.00 kg
Mounting Rack Mounting or Standalone
Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity 5 to 95%, (non-condensing)
Regulatory Approvals
  • EMI: FCC Part 15 Subpart B Class A and CE EN 55032 Class A
  • EMS: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge). IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
  • Free Fall: IEC60068-2-32
  • Shock: IEC60068-2-27
  • Vibration: IEC60068-2-6
  • Green: RoHS Compliant
MTBF >100,000 hours



# Model # Description Availability
1 10G4POE/RADC Quarra, 10G PTP Ethernet Switch with 24 x 10/100/1000 POE+ and 4x 1G/10G Uplink Ports.  -40°C – 75°C with 1x 90-264VAC Power and 1x 48-57VDC Power Input. Pre-Order Available
2 10G4POE/RDC Quarra, 10G PTP Ethernet Switch with 24 x 10/100/1000 POE+ and 4x 1G/10G Uplink Ports.  -40°C – 75°C with 2x 48-57VDC Power Input. Pre-Order Available
3 10G4POE/RUI Quarra, 10G PTP Ethernet Switch with 24 x 10/100/1000 POE+ and 4x 1G/10G Uplink Ports.  -20°C ~ 60°C with 2x 90~264VAC Hot Swap Power Inputs. Pre-Order Available
4 10G4POE/UI Quarra, 10G PTP Ethernet Switch with 24 x 10/100/1000 POE+ and 4x 1G/10G Uplink Ports.  -40°C – 75°C with 1x 90-264VAC Power Input. Pre-Order Available
