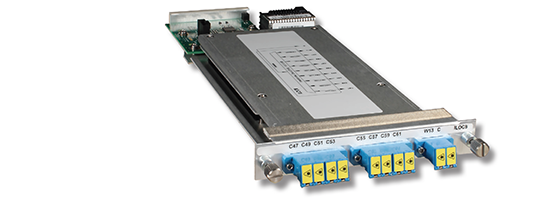

Artel InfinityLink ILOCx CWDM Optical Multiplexers, 4 or 8 Channel

Artel InfinityLink ILOCx CWDM Optical Multiplexers, 4 or 8 Channel

Category: Tags: , , , ,
Brand: Artel

$839.41

Description

Artel’s CWDM optical multiplexers create a comprehensive set of optical multiplexing solutions for the InfinityLink media transport platform. These modules, in conjunction with InfinityLink modules or third-party equipment, allow the creation of flexible, space and fiber-efficient optical networks.

Artel designed its optical multiplexing products to address the issue of space and fiber constraints.  For space efficiency, each module takes only one bay in a InfinityLink chassis. By using ITU standard filters and optics, multi-vendor, and fiber-efficient video and Ethernet networks can be created.

Completely passive and designed with the latest optical filters, Artel’s CWDM modules are extremely reliable, cost-effective, and feature low insertion losses.



InfinityLink IL6000 Chassis System

Applications

Optical multiplexer features

  • Low optical losses
  • Passive design for reliability
  • Bi-directional
  • Industry standard LC/PC connectors
  • Most modules include expansion port (passes all other wavelengths)
  • Compatible with InfinityLink and DigiLink chassis
  • For single-mode fiber

CWDM features

  • Industry standard ITU G.694.2 wavelengths
  • Optically multiplex up to 8channels over a single fiber
  • 4 or 8 channel options
  • Multiple 4 channel options
Specifications

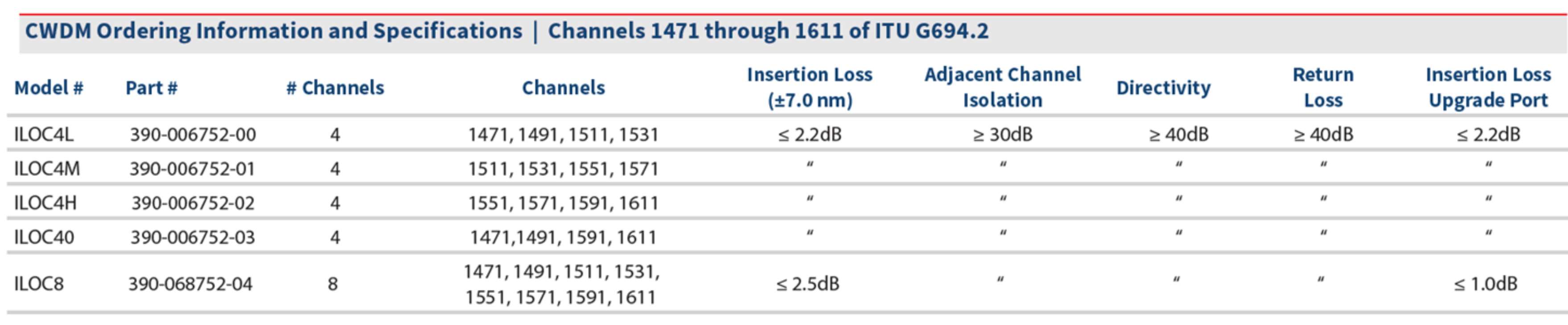

Ordering Information and Specifications
Please refer to the CWDM Optical Multiplexers Datasheet for ordering information and specifications.

# Model # Description Availability
1 390-006752-00 InfinityLink, Model ILOC4L, 4 Channel CWDM Optical Mux/Demux, Channels 1471, 1491, 1511, 1531 Pre-Order Available
2 390-006752-01 InfinityLink, Model ILOC4M, 4 Channel CWDM Optical Mux/Demux, Channels 1511, 1531, 1551, 1571 Pre-Order Available
3 390-006752-02 InfinityLink, Model ILOC4H, 4 Channel CWDM Optical Mux/Demux, Channels 1551, 1571, 1591, 1611 Pre-Order Available
4 390-006752-03 InfinityLink, Model ILOC4O, 4 Channel CWDM Optical Mux/Demux, Channels 1471, 1491, 1591, 1611 Pre-Order Available
5 390-006752-04 InfinityLink, Model ILOC8, 8 Channel CWDM Optical Mux/De-Mux, Channels 1471 – 1611 Pre-Order Available
