Description

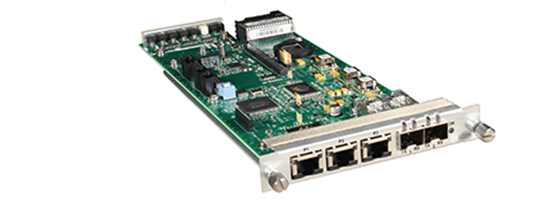

The ILC205 is a flexible Ethernet switch supporting up to 9 ports of 10/100/1000 traffic with optical connectivity.
The innovative design of the ILC205 enables users to aggregate 9 channels, 5 external and 4 internal, of 10/100/1000 Ethernet traffic for transport across electrical or optical networks, all in a low cost, single slot InfinityLink module. The module is fully nonblocking with a total capacity of 18 Gigabits of traffic and each port independently supports 10/100/1000 Ethernet.
The four internal ports can be linked to other modules in an InfinityLink chassis to provide internal Ethernet connectivity, eliminating the need for external cabling.
Unlike more complicated designs that require dedicated trunking modules and switching matrixes, the ILC205 is a simple Ethernet aggregator providing a reliable, and low cost solution for transporting video centric traffic and chassis management across Ethernet networks.
InfinityLink IL6000 Chassis System
Applications
Aggregate up to nine 10/100/1000 Ethernet links Non-blocking 18 Gigabit of switching capacity Provides Optical or Electrical Transport of:
- 10Base-T
- 100Base-TX
- 1000Base-T
- Ethernet standard
Three RJ-45 Copper Ports.
- 10/100/1000 auto negotiate
- Auto MDI/MDI-X
- Auto full-duplex and half-duplex
- VLAN capabilities
Externally accessible SFP transceivers
- 1000BaseT using Electrical SFP
- Optical budgets to 33dB
- WDM (1310nm, 1550nm)
- CWDM ITU G.694.2 (Channels 27-61)
- DWDM ITU G.694.1 (Channels 21-60)
Front and rear panel status LEDs.
- Major/minor alarms
- Link status
- Activity
Statistics per RFC 2819 Standard Simple and rugged design.
- Plug and play design requires no pre- deployment configuration
- Monitor, manage, and review statistics using InfinityLink Manager or SNMPv2
Environmental
Operating Temperature
0 to 50°C
Ambient storage temperature
-40 to 80°C
Relative humidity
10 to 95% (non-condensing)
Power dissipation
< 6 Watts
Physical
Dimensions
0.8” x 5” x 10.8”
(1 slot in InfinityLink chassis)
Weight
<2 pounds, (1kg)
Interface
External Electrical
Rear (3) RJ-45
External SFP
2 (Optical or RJ-45)
Internal
4 to other modules in InfinityLink chassis
Data Rates
10/100/1000 Ethernet
Regulatory Conformance
Compliance
CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
