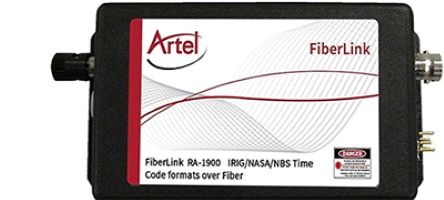

Artel FiberLink RA-1900 & XA-1900 IRIG/NASA/NBS Time Code formats over Fiber

Artel FiberLink RA-1900 & XA-1900 IRIG/NASA/NBS Time Code formats over Fiber

SKU: N/A Category: Tags: , , , , , ,
Brand: FiberLink

Price range: $848.51 through $1,497.37

Description

The Fiberlink XA/RA-1900 fiber optic systems transmit IRIG and similar NASA and NBS standard instrumentation time-code formats over standard multimode or single mode fiber at 850 nm or 1310 nm.
Combinations of four different units may be configured to provide point-to-point, point-to-multipoint or drop-and-repeat signal distribution. Ideal for the Military and Aerospace Industries.
XA/RA-1900 cards fit the 6000A card cage.

Applications

Additional information

Model

RA-1900-1, RA-1900-3, RA-1900-7-ST, RA-1900-C1S, RA-1900-C3S, RA-1900-C7S, XA-1900-1, XA-1900-3, XA-1900-7-ST, XA-1900-C1S, XA-1900-C3S, XA-1900-C7S
  • Built-in regulated power supplies allow operation from unregulated AC or DC sources.
  • The systems can be configured for four wire modem or AFSK applications.
  • Each unit must be purchased separately.
  • XA1900 is the Transmit side and the RA1900 is the Receive side.
  • May be mounted in the MCR-1000A card cage.

XA/RA-1900 Rack Card

# Model # Description Availability
1 RA-1900-1 FiberLink, Model RA-1900-1, Fiberlink IRIG, 850nm, MM, Rx, 1 fiber. ST. Box Pre-Order Available
2 RA-1900-3 FiberLink, Model RA-1900-3, Fiberlink IRIG, 1310nm, MM, Rx, 1 fiber. ST. Box Pre-Order Available
3 RA-1900-7-ST FiberLink, Model RA-1900-7-ST, Fiberlink IRIG, 1310nm, SM, Rx, 1 fiber. ST. Box Pre-Order Available
4 RA-1900-C1S FiberLink, Model RA-1900-C1S, Fiberlink IRIG, 850nm, MM, Rx, 1 fiber. ST. Card. Uses 1 slot. Pre-Order Available
5 RA-1900-C3S FiberLink, Model RA-1900-C3S, Fiberlink IRIG, 1310nm, MM, Rx, 1 fiber. ST. Card. Uses 1 slot. Pre-Order Available
6 RA-1900-C7S FiberLink, Model RA-1900-C7S, Fiberlink IRIG, 1310nm, SM, Rx, 1 fiber. ST. Card. Uses 1 slot. Pre-Order Available
7 XA-1900-1 FiberLink, Model XA-1900-1, Fiberlink IRIG, 850nm, MM, Tx, 1 fiber. ST. Box. Pre-Order Available
8 XA-1900-3 FiberLink, Model XA-1900-3, Fiberlink IRIG, 1310nm, MM, Tx, 1 fiber. ST. Box. Pre-Order Available
9 XA-1900-7-ST FiberLink, Model XA-1900-7-ST, Fiberlink IRIG, 1310nm, SM, Tx, 1 fiber. ST. Box. Pre-Order Available
10 XA-1900-C1S FiberLink, Model XA-1900-C1S, Fiberlink IRIG, 850nm, MM, Tx, 1 fiber. ST. Card, uses 1 slot. Pre-Order Available
11 XA-1900-C3S FiberLink, Model XA-1900-C3S, Fiberlink IRIG, 1310nm, MM, Tx, 1 fiber. ST. Card, uses 1 slot. Pre-Order Available
12 XA-1900-C7S FiberLink, Model XA-1900-C7S, Fiberlink IRIG, 1310nm, SM, Tx, 1 fiber. ST. Card, uses 1 slot. Pre-Order Available
Accessories
13 XP-1000A FiberLink, Model XP-1000A, Fiberlink Power Supply 115 to 16 VAC, heavy duty with connector Pre-Order Available
14 XP-1001 FiberLink, Model XP-1001, Fiberlink Power Supply 230 to 16 VAC, heavy duty with connector Pre-Order Available
