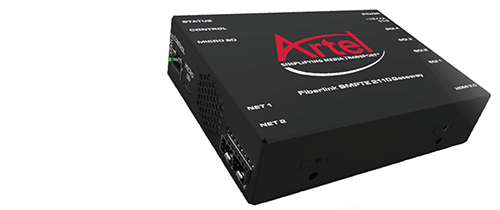

Artel FiberLink FL ST2110 Gateway 2 Channel SMPTE ST2110 Gateway SDI/IP

Artel FiberLink FL ST2110 Gateway 2 Channel SMPTE ST2110 Gateway SDI/IP

Category: Tags: , , ,
Brand: Artel

$1,901.21

Description

The FiberLink FL ST2110 series supports 2 channels (2 In/2 Out) of independent 3G/HD-SDI signals and provides a gateway function using ST2110 into dual 10GE media port. The FL ST2110 Gateway adapts to rapidly changing IP environments, quietly bridging SDI interfaces to JT-NM Tested ST2110 media streams.
It can be managed using open control protocols such as NMOS, EmBER+, and DashBoard, etc., thus providing flexibility to be used in different environments. Designed with studio applications in mind and mounting flexibility. SMPTE ST 2110 suite, including:
  • -10, System Timing and Definitions
  • -20, Uncompressed Active Video
  • -21, narrow sender & wide receiver
  • -30, PCM Digital Audio, Conformance Level A & B & C
SMPTE ST 2022-7 – Seamless Protection Switching 2 video streams up to 1080p 32+32audio streams with WAN buffering. 16 audio channels embed/extract per SDI interface, with shuffle.  Open Control gives you the freedom to run from our control system, and/or seamlessly from many 3rd-party control systems (e.g. VSM, Convergent, Magellan, etc.).

Designed with studio applications in mind and mounting flexibility.

Applications

SMPTE ST 2110 suite, including:
  • -10, System Timing and Definitions
  • -20, Uncompressed Active Video
  • -21, narrow sender & wide receiver
  • -30, PCM Digital Audio, Conformance Level A & B & C
SMPTE ST 2022-7 – Seamless Protection Switching.
2 video streams up to 1080p.
32+32 audio streams with WAN buffering.
16 audio channels embed/extract per SDI interface, with shuffle.
Open Control:
  • Gives you the freedom to run from our control system, and/or seamlessly from many 3rd-party control systems (e.g. VSM,Convergent, Magellan, etc.)

1 RJ-45 control port (10/100/1000BASE-T).

Supports both Single Mode and Multimode (62.5u & 50u) fiber types.
VESA, desk, pillar and other mounting via optional brackets.
Optional rack tray provides secure placement of three FL ST2110 gateways, bricks and cable management.
Studio quiet operation.

TRANSMITTER OPTICAL OUTPUT

CONNECTOR
LC
PORT TYPE
10GBASE-LR
OUTPUT POWER
-5.2 dBm for single mode, -5dBm for multimode
LINK LENGTH (max.)
10km for single mode
WAVELENGTH
1310nm for single mode, 850nm for multimode

TRANSMITTER: SERIAL VIDEO BNC INPUT

DATA RATE RANGE
1.485 Gbps to 2.97 Gbps
NUMBER OF INPUTS
2
SUPPORTED FORMATS
720p 50Hz,720p 59.94Hz, 720p 60Hz, 1080i 50, 1080i 59.94, 1080i 60, 1080p 50, 1080p 59.94, 1080p 60

RECEIVER BNC OUTPUTS

ALIGNMENT JITTER
1.485Gbps: <1.0UI jitter measured 10Hz-100kHz, <0.2UI above 100kHz
2.97Gbps: <1.0UI jitter measured 10Hz-100kHz, <0.3UI above 100kHz
DC OFFSET
0V  ± 0.5V
NUMBER OF OUTPUTS
2
OVERSHOOT
< 10% of amplitude
RISE/FALL TIME
1.485Gbps: <270ps, <100ps difference 2.97Gbps:<135ps,<50ps difference
SIGNAL LEVEL
800mV  ± 10%
TIMING JITTER
< 0.2 UI at 270 Mbps; < 1.0 UI at  1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal

RECEIVER FIBER OPTIC INPUT

CONNECTOR
LC
MINIMUM INPUT SENSITIVITY
-12.6dBm for single mode -11 dBm for multimode
WAVELENGTH
1310nm for single mode, 850nm for multimode

GENERAL SPECIFICATIONS

BOX VERSION DIMENSIONS
4.98 x 6.75 x 1.63 (in)
126.49 x 171.45 x 41.40 (mm)
OPERATING TEMPERATURE
-0 º C to +40 º C
POWER
15 volts, 15-40W (application dependent)
WEIGHT
815grams (1.8 pounds)

# Model # Description Availability
1 397-030010-00 FiberLink, Model FLST2110, FiberLink ST2110 Gateway, 2-in/2-out SDI/IP Converter Pre-Order Available
