Artel FiberLink 6000A Series Rackmountable Card Cage for Fiberlink Card Products

Artel FiberLink 6000A Series Rackmountable Card Cage for Fiberlink Card Products

Category: Tags: , , ,
Brand: Artel

$528.00

Description

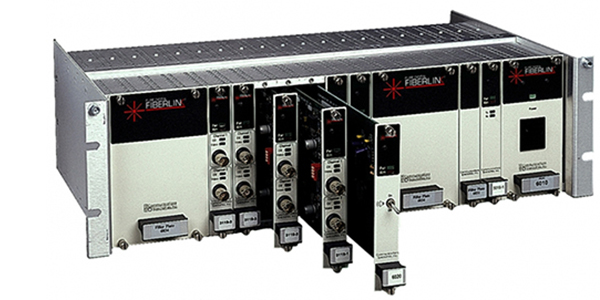

The Fiberlink 6000A Rack Mountable 19″ card cage offers 20 positions (slots) for any combination of Fiberlink transmitter, receiver and transceiver card modules as well as power supply and alarm sensing modules.
The optional alarm module indicates fault condition via an audible piezo sounder, blinking red LED and activation of isolated contacts for use with remote monitoring.  Optical signal input and output connectors on each card module are at the rear of the card cage.
May be powered with optional 3-position plug-in power supply or with an external, customer-provided power source.  Two power supplies may be used to provide redundant power.
Single and multiple position blank filler panels are available to conceal positions not in use.
The systems is ROHS Compliant.
The Model 6020 Alarm Sensing Module is a single position plug-in card for use with the model 6000 card-cage. When installed, the Alarm Sensing Module senses a fault condition from any Fiberlink alarm-equipped transmission card/module plugged into the card-cage. When a fault occurs, a visual, audible and remote indication from the unit informs the user of the fault condition.  All operating power for the Alarm Sensing Module is provided by the Model 6000A card cage.



The 6010A is an 85 watt power supply module for the 6000A Series of Fiberlink Rack Mount Card Cages.

  • Rackmountable Card Cage for FiberLink Card Products.
  • Rackmountable 19” card cage offers 20 positions for any combination of FiberLink transmitter, receiver and transceiver card modules. (Please refer to the FiberLink® products’ data sheet for slot and power requirements).
  • Cage may be powered with optional 3-position plug-in power supply or with an external, customer provided power source.
  • Two power supplies may be used to provide redundant power.
  • Optical signal input and output connectors on each card module are at the rear of the card cage.
  • Optional alarm module indicates fault condition via an audible piezo sounder, blinking red LED and activation of isolated contacts for use with remote monitoring.
  • Single and multiple position blank filler panels are available to conceal positions not in use.

# Model # Description Availability
1 6000A FiberLink, Model 6000A, Fiberlink 20 Position Card Cage Pre-Order Available
Accessories
2 6010A-AU FiberLink, Model 6010A-AU, Universal Power Supply, 85W for 6000A – uses 3 “slots” Pre-Order Available
3 6010A-EU FiberLink, Model 6010A-EU, Universal Power Supply, 85W for 6000A – uses 3 “slots” Pre-Order Available
4 6010A-JP FiberLink, Model 6010A-JP, Universal Power Supply, 85W for 6000A – uses 3 “slots” Pre-Order Available
5 6010A-NA FiberLink, Model 6010A-NA, Fiberlink Universal Power Supply, 85W for 6000A – uses 3 “slots” Pre-Order Available
6 6010A-UK FiberLink, Model 6010A-UK, Universal Power Supply, 85W for 6000A – uses 3 “slots” Pre-Order Available
7 6012A-AU FiberLink, Model 6012A-AU, Universal Power Supply, 150W for 6000A – uses 3 “slots” Pre-Order Available
8 6012A-EU FiberLink, Model 6012A-EU, Universal Power Supply, 150W for 6000A – uses 3 “slots” Pre-Order Available
9 6012A-NA FiberLink, Model 6012A-NA, Fiberlink Universal Power Supply, 150W for 6000A – uses 3 “slots” Pre-Order Available
10 6012A-UK FiberLink, Model 6012A-UK, Universal Power Supply, 150W for 6000A – uses 3 “slots” Pre-Order Available
11 6020A FiberLink, Model 6020A, Fiberlink Alarm Sensing Module for 6000A – uses 1 “slot” Pre-Order Available
12 6031 FiberLink, Model 6031, Fiberlink Filler Panel – 1 slot Pre-Order Available
13 6032 FiberLink, Model 6032, Fiberlink Filler Panel – 2 slots Pre-Order Available
14 6034 FiberLink, Model 6034, Fiberlink Filler Panel – 4 slots Pre-Order Available
