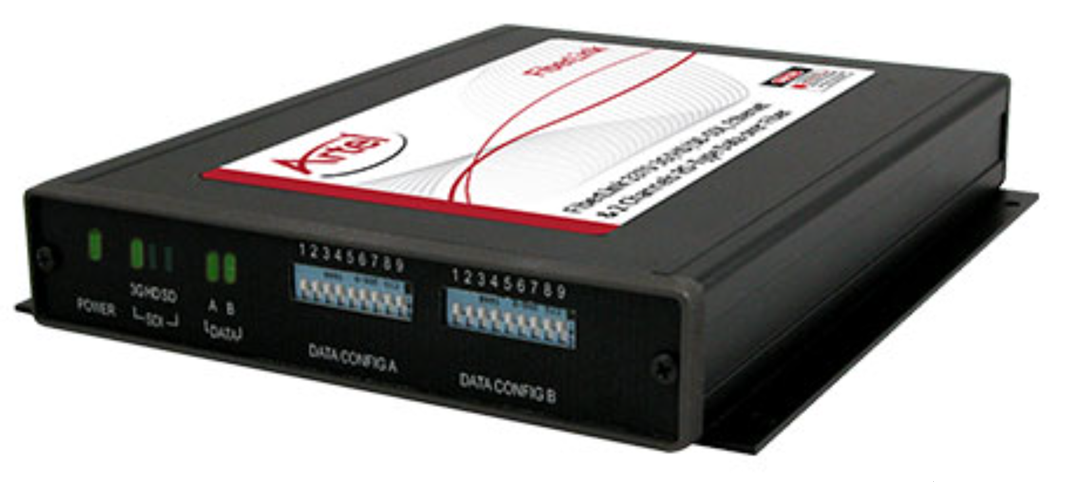

Artel FiberLink 3370 Series 3G/HD/SD-SDI, Ethernet & 2 Channels RS-Type Data over Fiber

Artel FiberLink 3370 Series 3G/HD/SD-SDI, Ethernet & 2 Channels RS-Type Data over Fiber

Categories: , Tags: , , , ,
Brand: Artel

$2,291.44

Description

The Fiberlink 3370 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to transmit 10/100 Base-T Ethernet and two channels of RS-Type data over one single mode fiber.
All data channels are available simultaneously and convenient switches on the 3370 Series transmitter allow the operator to configure each of the two pairs of data independently.
Data signals are not required to operate the Fiberlink 3370 link and it can be used as a stand-alone 3G/HD/SD-SDI optical link.
Previously serialized audio that is present SDI stream is left intact throughout the entire transmission process.
The 3370 Series is immune to pathological signals over the entire budget link and operating temperature range. Signals are equalized and re-clocked prior to fiber optic transmission and the 3371 receiver features a re-clocked SDI output.
The 3370 model operates with one single mode fiber. Available in card versions and a small footprint box version.
This device is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more.

Applications

  • Offers 3G/HD/SD-SDI & 2 Channels of RS Type Serial Data plus 10/100 Ethernet.
  • Ideal for broadcast or corporate studios, OB Vans, Point-of-View Cameras, Rental & Staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!
  • Supports 3G/HD/SD-SDI inputs with or without embedded audio and data.
  • This product supports HDTV resolutions of 480p, 720p and 1080p.
  • SMPTE complaint 3G, HD and SD-SDI data rates.
  • Transmit up to 2 channels of bi-directional RS-Type data.
  • Transmit 10/100 Base-T Ethernet.  All data and ethernet channels available simultaneously.
  • SDI signal is equalized and re-clocked prior to fiber optic transmission.
  • Receiver features a re-clocked SDI output.
  • Immunity to pathological patterns over entire link budget and operating temperature range.
  • Compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 276M.
  • Supports one single mode fiber (ST connectors).
  • 14 dB Optical Link Budget @ 2.97 Gbps
  • Available in Box and Card versions

FiberLink 3370/3371 Rack Card

3370 Transmitter: Fiber Optic Output

Connector
ST
Emmiter Type
FP Laser
Output Power (nominal)
-4.5 dBm
SDI Re-clocking
At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Wavelengths Used
1310nm, 1490nm, 1550nm
3370 Transmitter: Serial Video BNC Input

Data Rate Range
270 Mbps to 2.97 Gbps
Equalization
Automatic up to 100m of Belden  1694A at 3.0 Gbps, 200m at  1.485 Gbps and 350m at 270 Mbps
Number of Inputs
1
Re-clocked Data Rates
270 Mbps (SMPTE 259M),1.485 Gbps (SMPTE 292),2.97 Gbps (SMPTE 424M-2006)
Return Loss
>10dB up to 2.97 Gbps
Supported Standards
SMPTE 259M, 292, 297-2006,  424M-2006
3371 Receiver: Fiber Optic Input

Connector
ST
Maximum Input Power
0 dBm
Minimum Input Sensitivity
-17 dBm at 2.97 Gbps;-20 dBm at 1.485 Gbps-21 dBm at 270 Mbps;
Wavelength
1100 – 1620 nm
3371 Receiver: Serial Video BNC Output

Alignment Jitter
< 0.2 UI at 270 Mbps; < 0.2 UI at  1.485 Gbps; < 0.3 UI at 2.97 Gbps  with color bar signal
DC Offset
0V  ± 0.5V
Number of Outputs
1
Overshoot
< 10% of amplitude
Re-clocking
At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Rise/Fall Time
< 135 ps at 2.97 Gbps per SMPTE 424M-2006; < 270 ps at 1.485 Gbps per SMPTE 292; 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
Signal Level
800mV  ± 10%
Timing Jitter
< 0.2 UI at 270 Mbps; < 1.0 UI at  1.485 Gbps; < 2.0 UI at 2.97 Gbps  with color bar signal
Data Specifications

Control Format
Switch selectable RS-232, RS-422  & RS-485 (4 wire or 2 wire);
Data Bandwidth
DC to 115 Kb/sec, max.
Data Channels
2 Channels, Bi-Directional
Protocols
NRZ, NRZI, RZ, Manchester, Bi-phase
Signal Connectors
Removable terminal block
Ethernet Specifications

Port
10/100 Base-T, RJ-45 connector,  Auto-MDIX
Speed
10 Mbps & 100 Mbps Ethernet,  Switch Selectable
General Specifications

Box Version Dimensions
6.5 W x 1.15 H x 8 L (inches)165 W x 29 H x 203 L (mm)
Indicators
Power, Data Rate lock (3G, HD, SD), Alarm (card version only),  RS-Data Channel 1, RS-Data Channel 2  & Ethernet LEDs on RJ-45 Connector
MTBF
36,000 Hours
Number of Fibers Required
1 fiber for single mode fiber
Operating Temperature
-10 º C to +50 º C
Power
9-24 volts, AC or DC3370: 4.8 watts, 16.4 BTU/Hr3371: 4.65 watt s, 15.87 BTU/Hr
Slots in 6000A Card Cage
2
Weight
approx. 1 lb.; 0.45 kg

# Model # Description Availability
1 3370-B7S FiberLink, Model 3370-B7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Tx – Box Pre-Order Available
2 3370-C7S FiberLink, Model 3370-C7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Tx – Card – Uses 2 “slots” Pre-Order Available
3 3371-B7S FiberLink, Model 3371-B7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Rx – Box Pre-Order Available
4 3371-C7S FiberLink, Model 3371-C7S, Fiberlink 3G/HD/SD-SDI, 2 RS Data, 10/100 Base-T Ethernet, 1310nm, SM, 1 fiber, ST, Rx – Card – Uses 2 “slots” Pre-Order Available
