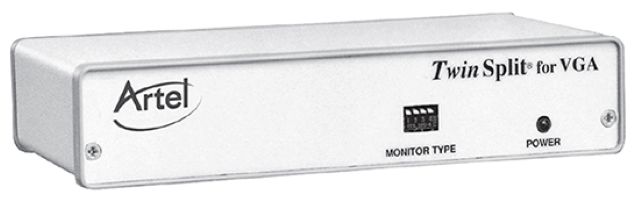

Artel FiberLink 1302 1×2 VGA Distribution Amplifier

Artel FiberLink 1302 1×2 VGA Distribution Amplifier

SKU: N/A Category: Tags: , , , , , ,
Brand: Artel

Price range: $294.94 through $667.01

Description

The TwinSplit fully-buffered distribution amplifier offers two outputs to connect multiple VGA monitors to a single VGA source. Supports all VGA, SVGA, XGA, SXGA and UXGA resolutions up to 1600 x 1280. It is ideal for Digital Signage, Remote Monitoring, Corporate, Manufacturing, Inspection, Education, Control Room and Court Room applications.
The unit operates at distances up to 250 feet at 300 MHz bandwidth.  Compatible with Apple video interfaces, including: iMAC, Power MAC G4 Cube, Power MAC G4, Macintosh Server G4, iBook and Titanium PowerBook G4.
The compact, all metal casing is designed for easy rack mounting.
Input and output connectors located on rear of unit.
UL/CSA/CE approved power supply and one 6-ft. input cable are included.  Output cables must be purchased separately

FiberLink 1302 TwinSplit for VGA Back Panel

Additional information

Model

1302, 1302-AU, 1302-EU, 1302-U, 1302-U-JP, 1302-UK, 1304, 1304-AU, 1304-EU, 1304-JP, 1304-U, 1304-U-EU, 1304-UK
  • Connect multiple VGA monitors to a single VGA source.
  • Supports all VGA, SVGA, XGA, SXGA and UXGA resolutions up to 1600 x 1280.
  • Operates at distances up to 250 feet.
  • 300 MHz bandwidth.
  • Compatible with newer Apple video interfaces, including: iMAC, Power MAC G4 Cube, Power MAC G4, Macintosh Server G4, iBook and Titanium PowerBook G4.
  • Compact, all metal casing.
  • Input and output connectors located on rear.
  • Designed for easy rack mounting.
  • Unit comes with UL/CSA/CE approved power supply and one 6-ft. input cable. Output cables must be purchased separately.

# Model # Description Availability
1 1302 FiberLink, Model 1302, TwinSplit for VGA – 1×2 Dist Amp Pre-Order Available
2 1302-AU FiberLink, Model 1302-AU, TwinSplit for VGA – 1×2 Dist Amp Pre-Order Available
3 1302-EU FiberLink, Model 1302-EU, TwinSplit for VGA – 1×2 Dist Amp Pre-Order Available
4 1302-U FiberLink, Model 1302-U, TwinSplit for VGA – 1×2 Dist Amp Pre-Order Available
5 1302-U-JP FiberLink, Model 1302-U-JP, TwinSplit for VGA – 1×2 Dist Amp Pre-Order Available
6 1302-UK FiberLink, Model 1302-UK, TwinSplit for VGA – 1×2 Dist Amp Pre-Order Available
7 1304 FiberLink, Model 1304, QuadSplit for VGA – 1×4 Dist Amp Pre-Order Available
8 1304-AU FiberLink, Model 1304-AU, QuadSplit for VGA – 1×4 Dist Amp Pre-Order Available
9 1304-EU FiberLink, Model 1304-EU, QuadSplit for VGA – 1×4 Dist Amp Pre-Order Available
10 1304-JP FiberLink, Model 1304-JP, QuadSplit for VGA – 1×4 Dist Amp Pre-Order Available
11 1304-U FiberLink, Model 1304-U, QuadSplit for VGA – 1×4 Dist Amp, 110-230V Pre-Order Available
12 1304-U-EU FiberLink, Model 1304-U-EU, QuadSplit for VGA – 1×4 Dist Amp, 110-230V, EU line cord Pre-Order Available
13 1304-UK FiberLink, Model 1304-UK, QuadSplit for VGA – 1×4 Dist Amp Pre-Order Available
Accessories
14 101121 FiberLink, Model 101121, Power Supply: Use with 1302, 1304, 1706, 1802, 1806 (120 VAC; +/-5VDC; 500 mA) Pre-Order Available
15 129547 FiberLink, Model 129547, Power Supply: Use with 1302, 1304, 1706, 1802, 1806 (230VAC; +/-5VDC 500mA/600mA) Pre-Order Available
