Artel DigiLink WDM Multiplexers Wave Division Optical Multiplexers (DLOW1, DLOW2, DLOWE)

Artel DigiLink WDM Multiplexers Wave Division Optical Multiplexers (DLOW1, DLOW2, DLOWE)

Category: Tags: , , , ,
Brand: Artel

Description

Artel’s DigiLink media transport platform offers a comprehensive set of optical multiplexing solutions for DWDM, CWDM, and WDM.
These multiplexers, in conjunction with other DigiLink solutions or third party equipment, allow the creation of flexible, space and fiber efficient, optical networks. Artel designed its optical multiplexing products to address the issue of space and fiber constraints.
For space efficiency, each module takes only one bay in a DigiLink chassis. By using ITU standard filters and optics, multi-vendor, cost-effective, and fiber efficient video and Ethernet can be created.
Completely passive and designed with the latest optical filters, Artel’s DWDM, CWDM, and WDM solutions are extremely reliable, cost-effective, and feature low insertion losses.

Applications

Optical multiplexer features
  • Low optical losses
  • Passive design for reliability
  • Bi-directional
  • Industry standard ITU wavelengths
  • Industry standard LC/PC connectors
  • Most modules include expansion port (passes all other wavelengths)
  • Compatible with all DigiLink chassis (including DL4000P passive 4 slot chassis)

WDM features (Model Numbers: DLOW1, DLOW2, DLOWE)

  • 1310nm and 1550nm combiner/splitters
  • Single or dual WDM options
  • External WDM conserves chassis slot
  • Split ratios from 50/50 to 1/99

CWDM features (Model Numbers: DLOCxx)

  • Industry standard ITU G.694.2 wavelengths
  • Optically multiplex up to 18 channels over a single fiber
  • 4, 8, 10, and 18 channel options
  • Multiple 4 channel options

DWDM features (Model Numbers: DLODxxx)

  • Industry standard ITU G.694.1 wavelengths
  • Optically multiplex up to 40 channels on a single fiber
  • 4,10, 20, and 40 channel options
  • Interconnect modules to enable 40 channels in a single 1RU chassis

Dual Window Wide Band Optical Splitters (Model Numbers: DLOS2-xx) Optical Production Switch (Model Number: DLOSW1)

  • Supports bi-directional applications
  • Manual over-ride
  • Supports all wavelengths
    • WDM (1310 – 1550)
    • CWDM ITU G.694.1
    • DWDM
Specifications

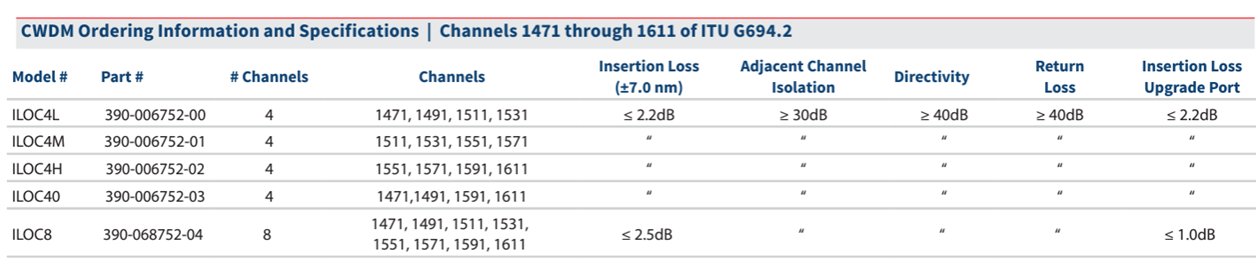

Odering Information and Specifications
Please refer to the Optical Multiplexers datasheet for ordering information and specifications.

# Model # Description Availability
1 390-008752-00 DigiLink, Model DLOC4L, 4 Channel CWDM Optical Mux/De-Mux, Channels 1471, 1491, 1511, 1531 Pre-Order Available
2 390-008752-01 DigiLink, Model DLOC4M, 4 Channel CWDM Optical Mux/De-Mux, Channels 1511, 1531, 1551, 1571 Pre-Order Available
3 390-008752-02 DigiLink, Model DLOC4H, 4 Channel CWDM Optical Mux/De-Mux, Channels 1551, 1571, 1591, 1611 Pre-Order Available
4 390-008752-03 DigiLink, Model DLOC4O, 4 Channel CWDM Optical Mux/De-Mux, Channels 1471, 1491, 1591, 1611 Pre-Order Available
5 390-008752-04 DigiLink, Model DLOC8, 8 Channel CWDM Optical Mux/De-Mux, Channels 1471 – 1611 Pre-Order Available
6 390-008752-10 DigiLink, Model DLOC10, 10 Channel CWDM Optical Mux/De-Mux, Channels 1271 – 1451 Pre-Order Available
7 390-008752-18 DigiLink, Model DLOC18, 18 Channel CWDM Optical Mux/De-Mux, Channels 1271 – 1611 Pre-Order Available
8 390-008753-00 DigiLink, Model DLOS2, 50/50 Optical Splitter Pre-Order Available
9 390-008753-01 DigiLink, Model DLOS2-01, 1/99 Optical Splitter Pre-Order Available
10 390-008753-05 DigiLink, Model DLOS2-05, 5/95 Optical Splitter Pre-Order Available
11 390-008753-10 DigiLink, Model DLOS2-10, 10/90 Optical Splitter Pre-Order Available
12 390-008753-20 DigiLink, Model DLOS2-20, 20/80 Optical Splitter Pre-Order Available
13 390-008753-30 DigiLink, Model DLOS2-30, 30/70 Optical Splitter Pre-Order Available
14 390-008753-40 DigiLink, Model DLOS2-40, 40/60 Optical Splitter Pre-Order Available
15 390-008753-50 DigiLink, Model DLOS22, 50/50 Dual Optical Splitter Pre-Order Available
16 390-008754-01 DigiLink, Model DLOW1, Single WDM Optical Mux/De-Mux, 1310/1550 Pre-Order Available
17 390-008754-02 DigiLink, Model DLOW2, Dual WDM Optical Mux/De-Mux, 1310/1550 Pre-Order Available
18 390-008762-21 DigiLink, Model DLOD421, 4 Channel DWDM Optical Mux/Demux Module Channels 21 – 24 Pre-Order Available
19 390-008762-25 DigiLink, Model DLOD425, 4 Channel DWDM Optical Mux/Demux Module Channels 25 – 28 Pre-Order Available
20 390-008762-29 DigiLink, Model DLOD429, 4 Channel DWDM Optical Mux/Demux Module Channels 29 – 32 Pre-Order Available
21 390-008762-33 DigiLink, Model DLOD433, 4 Channel DWDM Optical Mux/Demux Module Channels 33 – 36 Pre-Order Available
22 390-008762-37 DigiLink, Model DLOD437, 4 Channel DWDM Optical Mux/Demux Module Channels 37 – 40 Pre-Order Available
23 390-008762-41 DigiLink, Model DLOD441, 4 Channel DWDM Optical Mux/Demux Module Channels 41 – 44 Pre-Order Available
24 390-008762-45 DigiLink, Model DLOD445, 4 Channel DWDM Optical Mux/Demux Module Channels 45 – 48 Pre-Order Available
25 390-008762-49 DigiLink, Model DLOD449, 4 Channel DWDM Optical Mux/Demux Module Channels 49 – 52 Pre-Order Available
26 390-008762-53 DigiLink, Model DLOD453, 4 Channel DWDM Optical Mux/Demux Module Channels 53 – 56 Pre-Order Available
27 390-008762-57 DigiLink, Model DLOD457, 4 Channel DWDM Optical Mux/Demux Module Channels 57 – 60 Pre-Order Available
28 390-008763-21 DigiLink, Model DLOD821, 8 Channel DWDM Optical Mux/Demux Module Channels 21 – 28 Pre-Order Available
29 390-008763-29 DigiLink, Model DLOD829, 8 Channel DWDM Optical Mux/Demux Module Channels 29 – 36 Pre-Order Available
30 390-008763-37 DigiLink, Model DLOD837, 8 Channel DWDM Optical Mux/Demux Module Channels 37 – 44 Pre-Order Available
31 390-008763-45 DigiLink, Model DLOD845, 8 Channel DWDM Optical Mux/Demux Module Channels 45 – 52 Pre-Order Available
32 390-008763-53 DigiLink, Model DLOD853, 8 Channel DWDM Optical Mux/Demux Module Channels 53 – 60 Pre-Order Available
33 390-008765-21 DigiLink, Model DLOD1021, 10 Channel DWDM Optical Mux/Demux Module Channels 21 – 30 Pre-Order Available
34 390-008765-31 DigiLink, Model DLOD1031, 10 Channel DWDM Optical Mux/Demux Module Channels 31 – 40 Pre-Order Available
35 390-008765-41 DigiLink, Model DLOD1041, 10 Channel DWDM Optical Mux/Demux Module Channels 41 – 50 Pre-Order Available
36 390-008765-51 DigiLink, Model DLOD1051, 10 Channel DWDM Optical Mux/Demux Module Channels 51 – 60 Pre-Order Available
37 390-008766-21 DigiLink, Model DLOD2021, 20 Channel DWDM Optical Mux/Demux Module Channels 21 – 40 Pre-Order Available
38 390-008766-41 DigiLink, Model DLOD2041, 20 Channel DWDM Optical Mux/Demux Module Channels 41 – 60 Pre-Order Available
39 390-008767-21 DigiLink, Model DLOD4021, 40 Channel DWDM Optical Mux/Demux Shelf Channels 21 – 60 Pre-Order Available
40 390-008780-01 DigiLink, Model DLOSW1, Optical Protection Switch Pre-Order Available
Accessories
41 396-550103-00 DigiLink, Model FOCBLLCLC03M, Fiber Optic Cable, LC/PC to LC/PC, 0.3 Meters Simplex 3.0mm Pre-Order Available
42 396-550105-00 DigiLink, Model FOCBLLCLC05M, Fiber Optic Cable, LC/PC to LC/PC, 0.5 Meters Simplex 3.0mm Pre-Order Available
43 396-550110-00 DigiLink, Model FOCBLLCLC1M, Fiber Optic Cable, LC/PC to LC/PC, 1 Meters Simplex 3.0mm Pre-Order Available
44 396-550110-15 DigiLink, Model FOCBLCLC1M-15, Fiber Optic Cable, LC/PC to LC/PC, 1 Meters Simplex 3.0mm, 15dB inline Attenuation Pre-Order Available
