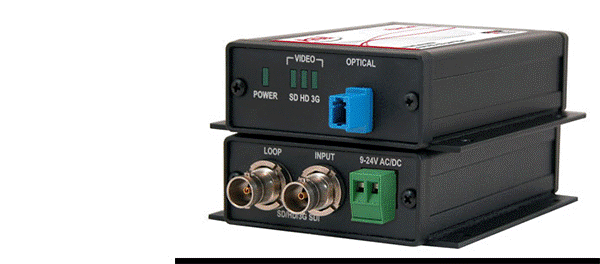

Artel 3350-B7L

Artel 3350-B7L

SKU: 3350-B7L Categories: ,
Brand: Artel

FiberLink, Model 3350-B7L, Fiberlink 3G/HD/SD-SDI, 1310nm, SM and MM, 1 fiber, LC, Tx – Box

$962.00

Description

Digital Video over Fiber
Artel FiberLink 3350-B7L 3G/HD/SD-SDI over Fiber

3350 Transmitter Optical Output

The Fiberlink 3350 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber.
Signals are equalized and re-clocked prior to fiber optic transmission. The 3350 transmitter features a re-clocked and equalized SDI loop through and the 3351 receiver features two re-clocked and equalized SDI outputs. The 3350 Series is compliant with SMPTE 297-2006 and has the ability to operate seamlessly with Fiberlink Matrix and other SMPTE 297-2006 fiber optic compliant devices.
The 3350 Series is immune to pathological signals over the entire budget link and operating temperature range.

Additional information

Weight 1 lbs
Dimensions 6 × 4 × 2 in
  • 3G/HD/SD-SDI – This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
  • HDTV Resolutions to 1080p – This product supports HDTV resolutions of 480p, 720p and 1080p.
  • Single Mode and Multimode Fiber – This product supports both Single Mode and Multimode fiber types in the same unit with no special ordering, configuration or tweaks.
  • Box and Card – This product is available in a box or card configuration.
  • CWDM Capable – This product can be used with complex systems that employ Coarse Wave Division Multiplexers (CWDMs). Contact sales for available wavelengths.
  • Transmitter & Receiver – 3350 = Transmitter. 3351 = Receiver

3350 Transmitter Optical Output

Connector
LC receptacle, PC polish or ST
Emitter Type
FP Laser
Output Power (Nominal)
-3.5 dBm at 270 Mbps;-3.5 dBm at1.485 Gbps;-3.5 dBm at 2.97 Gbps
Re-clocking
At 270 Mbps, 1.485 Gbps & 2.97 Gbps
SMPTE 297-2006 Labeling
L-PC-ABCD-1310
Wavelength
1310nm (nominal)

3350 Transmitter: Serial Video BNC Input

Data Rate Range
19.4 Mbps to 2.97 Gbps
Equalization
Automatic up to 100m of Belden  1694A at 3.0 Gbps, 200m at  1.485 Gbps and 350m at 270 Mbps
Number of Inputs
1
Re-clocked Data Rates
270 Mbps (SMPTE 259M, DVB-ASI-270),  1.485 Gbps (SMPTE 292),  2.97 Gbps (SMPTE 424M-2006)
Return Loss
>10dB up to 2.97 Gbps
Supported Standards
SMPTE 259M, 292, 297-2006,  424M-2006, 305M, 310M, 344M,  DVB-ASI

3350 Transmitter: Serial Video BNC Loop Through

Alignment Jitter
< 0.2 UI at 270 Mbps; < 0.2 UI at1.485 Gbps; < 0.3 UI at 2.97 Gbpswith color bar signal
DC Offset
0V  ± 0.5V
Number of Loop-Throughs
1
Overshoot
< 10% of amplitude
Re-clocking
At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Rise/Fall Time
< 135 ps at 2.97 Gbps per SMPTE 424M-2006;< 270 ps at 1.485 Gbps per SMPTE 292;0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
Signal Level
800mV  ± 10%
Timing Jitter
< 0.2 UI at 270 Mbps; < 1.0 UI at1.485 Gbps; < 2.0 UI at 2.97 Gbpswith color bar signal

3351 Receiver BNC Outputs

Alignment Jitter
< 0.2 UI at 270 Mbps; < 0.2 UI at  1.485 Gbps; < 0.3 UI at 2.97 Gbps  with color bar signal
DC Offset
0V  ± 0.5V
Number of Outputs
2
Overshoot
< 10% of amplitude
Re-clocking
At 270 Mbps, 1.485 Gbps & 2.97 Gbps
Rise/Fall Time
< 135 ps at 2.97 Gbps per SMPTE 424M-2006;< 270 ps at 1.485 Gbps per SMPTE 292;0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
Signal Level
800mV  ± 10%
Timing Jitter
< 0.2 UI at 270 Mbps; < 1.0 UI at  1.485 Gbps; < 2.0 UI at 2.97 Gbps  with color bar signal

3351 Receiver Fiber Optic Input

Connector
LC receptacle, PC polish or ST
Maximum Input Power
0 dBm
Minimum Input Sensitivity
-17 dBm at 2.97 Gbps;-20 dBm at 1.485 Gbps-21 dBm at 270 Mbps;
SMPTE 297-2006 Labeling
PC-ABCD-1310-1550
Wavelength
1100 – 1620 nm

General Specifications

Box Version Dimensions
5.21 x 3.50 x 1.15 (in)133 x 89 x 30 (mm)
Indicators
Power, Data Rate lock(3G, HD, SD/DVB-ASI)Alarm (Card Version Only)
Operating Temperature
-10 º C to +50 º C
Power
9-24 volts, AC or DC,3350: 1.6 watts, 5.46 BTU/Hr3351: 1.4 watts, 4.78 BTU/Hr
Slots in 6000A Card Cage
1
Weight
6.9 ounces, 196 grams
