Patton CL1314R/R/EUI[CL1314R/R/EUI]

Patton CL1314R/R/EUI[CL1314R/R/EUI]

$488.00
Quantity :

Overview
Ethernet extension doesn’t have to be expensive or difficult. The CL1300R series of Ruggedized Ethernet Extenders open the door to cost-effective Ethernet extension that is easy to set up. Featuring plug-and-play installation, the CL1300R series CopperLink Ethernet Extenders leverage existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at high speeds over long distances.

Operating over standard 0.5 mm (24 AWG) voice-grade wiring, the CL1300R series delivers speeds up to  5.7 Mbps and extends Ethernet connections across distances ranging from 2.7 to 6.9 km (1.7 to 4.3 miles). Whether you need connect to a remote office or private-network backbone to a corporate LAN—or interconnect such network-enabled devices such as PCs, digital sensors and IP cameras—Patton Ethernet Extenders offer the industry’s optimum combination of speed and distance.

Patton’s CopperLink Ethernet Extenders ensure hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electro-magnetic environment. Users “hard-set” the desired line rate via DIP switches or console Telnet. A 35mm DIN rail clip is included on all units for clean installations.

The CL1311R comes with a single Ethernet port and the CL1314R comes with two Ethernet ports.  Both units feature auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX).  That means you can use cross-over or straight-through cables (whichever is handy) to connect up your Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.

Operating at layer 2 of the OSI model (data link layer), the CL1300R series transparently passes all higher-layer protocols—including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO.

Set-up is easy! Simply connect up to your LAN devices to the Ethernet switch, plug the copper twisted-pair into each extender, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet Extenders are the ideal solution!

Distance on 24 AWG (0.5 mm)
Line Rate
K Feet
Miles
km
192
22.5
4.26
6.9
256
22.5
4.26
6.9
512
22.1
4.18
6.7
768
19.5
3.69
5.5
1024
18.5
3.50
5.6
1280
18.5
3.50
5.6
1536
18.6
3.50
5.6
2048
16.5
3.13
5.03
2304
16.5
3.13
5.03
4608
11
2.08
3.35
5696
9
1.70
2.74



Features

  • High Speed Extension—Achieve speeds up to 5.7 Mbps.
  • Multi-rate Selection—Just plug the units in and select the ideal user-configurable rate for your application.
  • CopperLink 2-Wire Connection—Easy 2-wire CopperLink connection via built-in RJ-11 port.
  • Ruggedized— Operating temperature of -40 to 85°C and optional conformal coating to protect against condensing humidity and corrosion.
  • Hardened—Aluminum enclosure designed to meet IP40 specifications; DIN rail mount included
  • Up to two Ethernet ports—The CL1311R has one RJ-45, 10/100Base-T Ethernet port. The CL1314R has two RJ-45, 10/100Base-T Ethernet ports.
  • Transparent LAN Bridging—Transparently pass higher-layer protocols with support for 802.1Q VLAN tagging.
  • Automatic Learning, Aging, and Filtering—Keeps local traffic local, ensuring efficient utilization of the long-range link.
  • Made in the USA—This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.



Applications

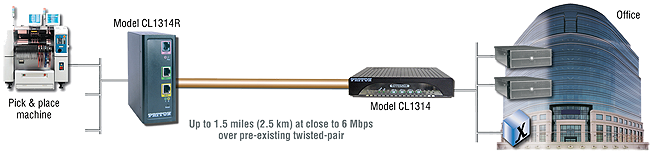

When interconnecting sites on a corporate campus, buildings and network devices often lie beyond reach of a standard Ethernet segment. Now, you can use existing copper network infrastructure to connect remote LANs across longer distances and at higher speeds than previously thought possible.

Patton’s CopperLink long range Ethernet Extender is the ideal solution for simple, cost-effective, high-speed campus LAN extension. Ethernet plug-‘n’-play operation gets your network up-and-running in seconds. Providing auto-sensing full/half duplex 10/100Base-T Ethernet ports—plus  an integrated crossover switch for hassle-free system setup—the value of this Ethernet extender is unsurpassed.

Plug-and-Play—Just unpack a pair of extenders and plug in the cables. Apply power and your connection is up and running. It just doesn’t get any easier!
High Speed/Long Reach—The CL1300 series Ethernet extenders provide the industry’s ultimate combination of speed and distance!


Extend 10/100Base-TX Ethernet to reach
beyond its natural limitations


Specifications
Protocol Transparent to higher layer protocols
Transmission Line
Single twisted pair

Line Rates
Rates from 192 kbps to 5.7 Mbps, selectable in all 64 kbps increments up to 5.7 Mbps

Front Panel LED Status Indicators
WAN: Link, LAN (Ethernet): Link/Act, Power

Line Coding
TC-PAM 16 for rates from 192 to 2.3 Mbps; TC-PAM 32 for rates above 2.3 Mbps

Connectors
RJ-45 on copper line side and 1 x 10/100 Ethernet (CL1311R) or 2 x 10/100 Ethernet (CL1314R), terminal block power connector

Ethernet Interface
CL1314R: Two RJ-45, 10/100Base-T, IEEE 802.3 Ethernet

Line Interface
Transformer coupled, 1500 VAC isolation

Management
DIP switch, Telnet console

MTBF
4.7 years

Power
External 90–260 VAC, 50–60 Hz (Universal Input)

Power Consumption
0.8A@5V

Operating Temp.
-40 to 185°F (-40 to 85°C)

Humidity
5 to 95%, non-condensing; CC option 85% condensing

Altitude
0 to 15,000 ft (0 to 4,600 m)

Enclosure
Aluminum (designed to meet IP40)

Dimensions
2.25W x 5.62H x 4.66D in. (5.7W x 14.27H x 11.83D mm)

Weight
0.7 lbs (0.3 kg)

Compliance
FCC Part 15A, CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC





ORDERING INFORMATION

Model Name

 Description

CL1314R/R/EUI

     Ruggedized 5.7 Mbps CopperLink Ethernet Extender (Remote); 2 x10/100; -40 to 85C; 100-240VAC
